The Pipeline Retrieval Problem

Picture a gas trunk line running at 1,500 PSI. A corrosion probe has reached end of life, yet shutting the line down costs a full day of production and a wave of penalties. Sending a technician in means a dangerous release risk and a confined-space entry. Most pipeline teams hit the same wall: how do you insert or pull a component from a live pipeline without stopping flow?

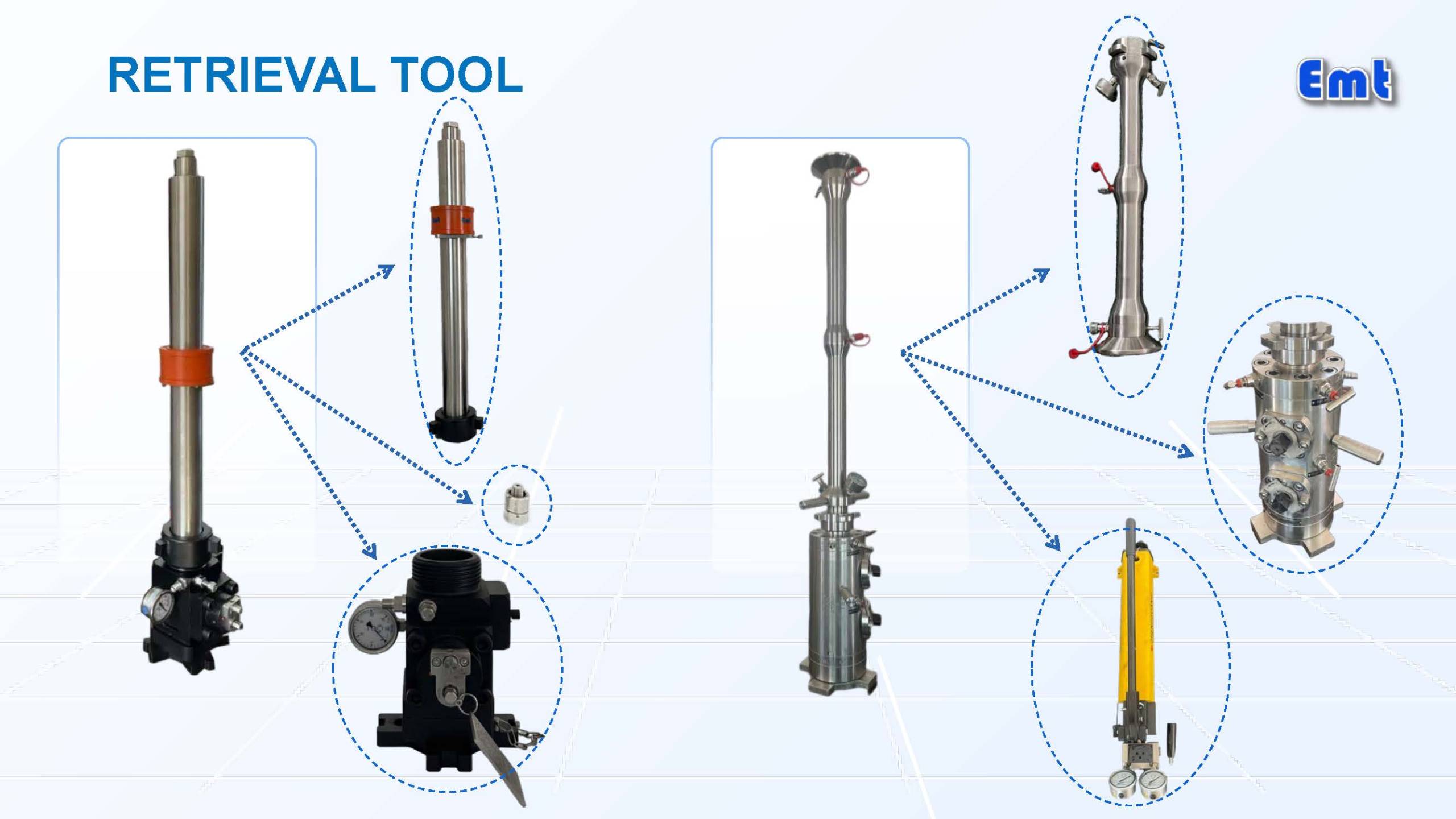

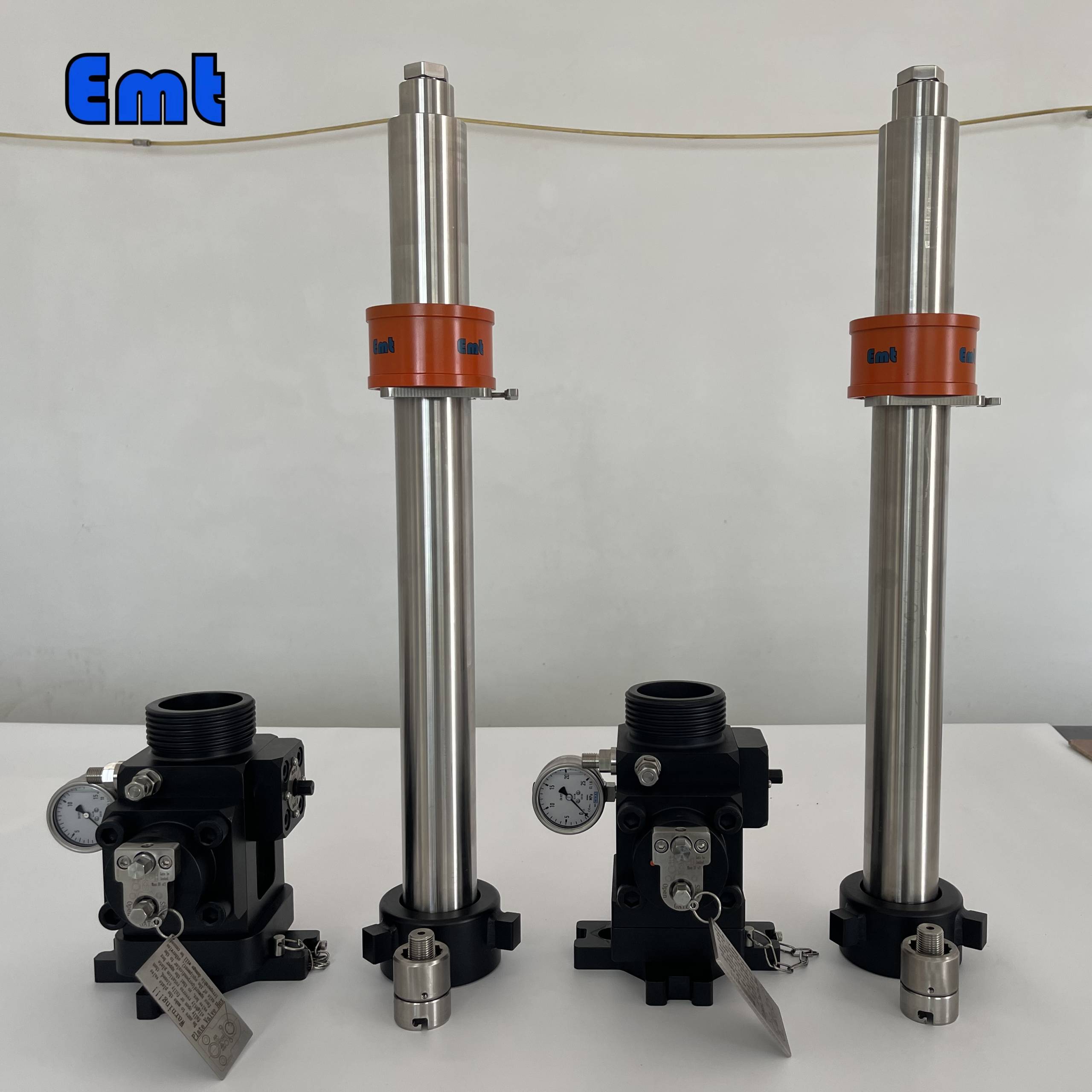

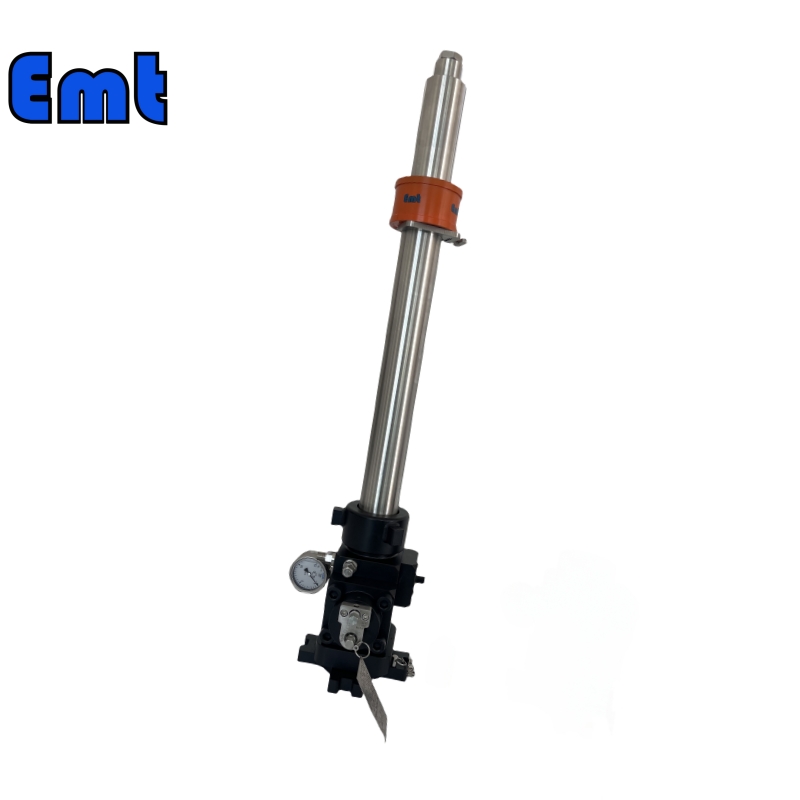

The answer is a purpose-built retrieval tool. The EMT-WRTV mechanical retriever lets one operator insert and extract a 2″ corrosion-monitoring assembly or an EMT pig-detector plug while the line stays pressurized. No shutdown. No confined-space entry. Just a controlled, repeatable motion that keeps the seal intact from start to finish. Therefore maintenance teams protect both output and safety while keeping the asset online.

Technical Parameters

Model	Max Pipe Size	Retriever Length (A)	Retriever + Valve (B)	Insertion Depth (C)	Weight
EMT-WRTV-12	12″ (DN300)	710 mm	985 mm	460 mm	25.4 kg
EMT-WRTV-24	24″	1000 mm	1275 mm	750 mm	27.6 kg
EMT-WRTV-36	36″	1300 mm	1575 mm	1050 mm	30.0 kg

Pressure rating: 2500 PSI (17.2 MPa) and 6000 PSI (41.3 MPa).

Temperature: -20 °C to 120 °C; high-temp version -20 °C to 200 °C.

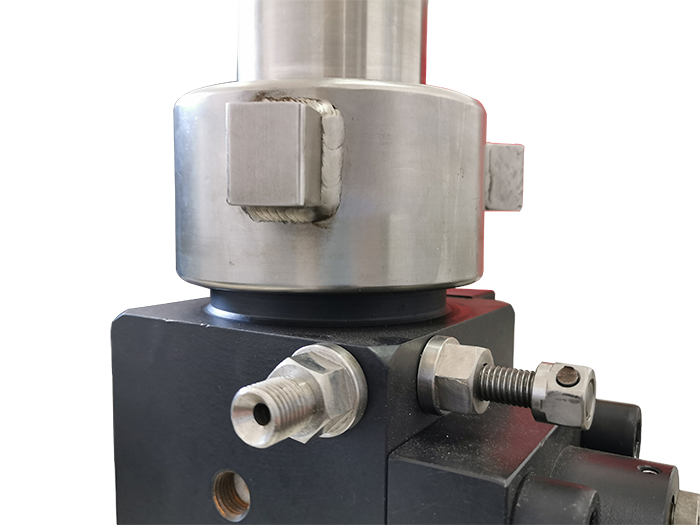

Drive: reduction-gear rotary. Valve: plate-type main valve.

Safety: misoperation-prevention lock.

A matching hydraulic variant (EMT-HRTV) covers 315–600 mm extraction at up to 6000 PSI.

Key Advantages of the EMT-WRTV Retrieval Tool

• One-person operation— a single technician completes the full insert/retrieve cycle under pressure.
• Lightweight and portable— the 12″ unit weighs only 25.4 kg and moves to site easily.
• Pressure-safe by design— the plate valve and safety lock block accidental release.
• Easy rotation— the reduction gear set lowers torque for smooth handling.
• Broad coverage— three sizes serve DN300 through 36″ mains.
• Customizable reach— insertion depth is set per line, so the tool fits your exact layout.

Where the Retrieval Tool Works

• Corrosion monitoring— swap LPR and corrosion probes without a shutdown.
• Pig detection— insert or recover EMT pig-detector special plug assemblies.
• Chemical injection service— retrieve injectors and samplers on live lines.
• Commissioning and maintenance— gas, oil, and water lines during routine service.
• Upstream to downstream— onshore fields, platforms, and city-gate stations needing live-line work.

EMT: 30 Years of Pipeline Integrity Manufacturing

Shenyang EMT Piping Technology Co., Ltd. grew from the Shenyang Institute of Energy Technology, founded in 1993. For 30 years we have built pipeline pigs, pig signalers, chemical injectors, corrosion monitors, quick-opening blind flanges, and retrieval tools. We hold ASME certification, run our own factory with traceable QC, and export to 50+ countries and regions. Our hardware serves Daqing and Liaohe oilfields and overseas operators alike, and our patent anti-wear surface extends service life in tough lines. Additionally, our qualified freight partners handle customs clearance, so delivery stays smooth for overseas buyers.

Meet EMT at International Oil & Gas Exhibitions

See the retrieval tool demonstrated live. EMT shows its pipeline-integrity range at major petroleum exhibitions such as ADIPEC, OTC, and CIPPE, and we are a member of the pipeline products and services association. Book a booth meeting to watch an under-pressure retrieval, review the WRTV on a rig model, and discuss your line specs with our engineers.

Proven in the Field: Customer Cases

• Petrodar (Sudan), Melut Basin EPCC 2010–2011— 96 chemical injectors, 43 corrosion probes, 43 corrosion coupons.
• CNOOC Iraq Missan 90-well stimulation (2015)— 405 chemical injectors.
• CNPC Iraq Halfaya (2018)— 18 chemical injectors.
• Lampung Cargil, Indonesia (2022)— 44 pig signalers; CNOOC China — 42 corrosion coupons, 42 chemical injectors.

These projects run on EMT live-line and monitoring hardware — the same engineering discipline behind the WRTV retriever.

FAQ — Retrieval Tool Questions

Q: What is a retrieval tool used for in pipelines?

A: It inserts and retrieves monitoring or detection assemblies from a pressurized line, so you service corrosion probes and pig detectors without stopping flow.

Q: Can the EMT-WRTV retrieval tool work under full pressure?

A: Yes. It operates at 2500 PSI and 6000 PSI, with a plate valve and safety lock that keep the line sealed during the cycle.

Q: How many people does it take to operate?

A: One. The reduction-gear drive and portable frame let a single technician finish insertion and retrieval.

Q: Which pipe sizes does it cover?

A: Three models cover 12″, 24″, and 36″ lines, with insertion depths from 460 mm to 1050 mm.

Q: Is the retriever available for high-temperature lines?

A: Yes. A high-temp version works from -20 °C to 200 °C, and the EMT-HRTV hydraulic model reaches 6000 PSI.
