What Is Corrosion Coupon Retrieval Tool?

As a corrosion coupon retrieval tool manufacturer, EMT supplies the hydraulic equipment that installs and retrieves corrosion coupons in pressurized pipelines and vessels. A corrosion coupon is a standardized test piece made from a material similar to the pipe wall. It is exposed to the process medium, then removed and weighed so mass loss or thickness change reveals the corrosion rate. The retrieval tool is the device that places the coupon, fixed on a plug, into the pipeline fitting and pulls it back out safely while the line stays in service. This makes coupon monitoring a direct, economical way to estimate average pipeline or vessel service life.

What Are the Key Parameters?

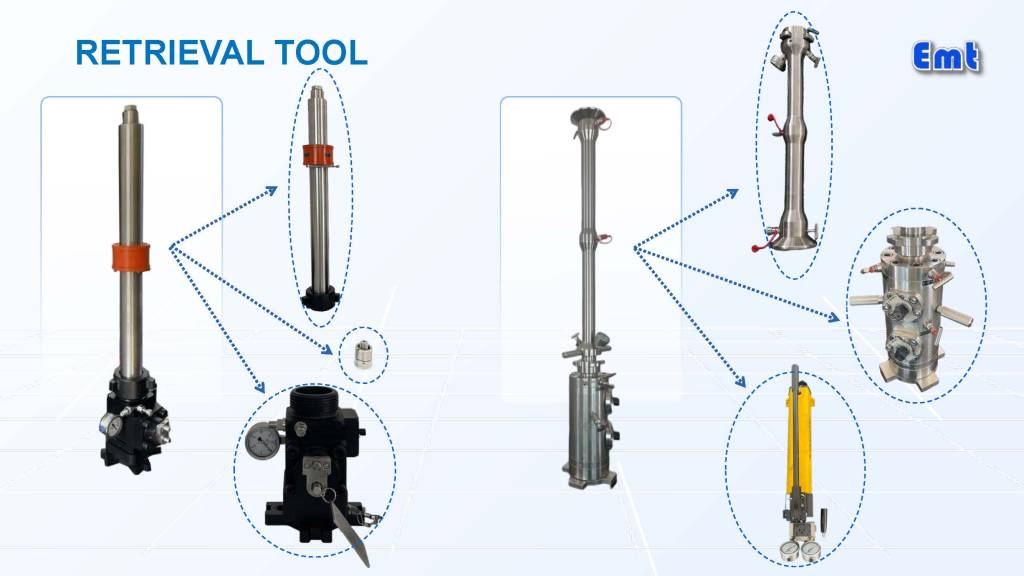

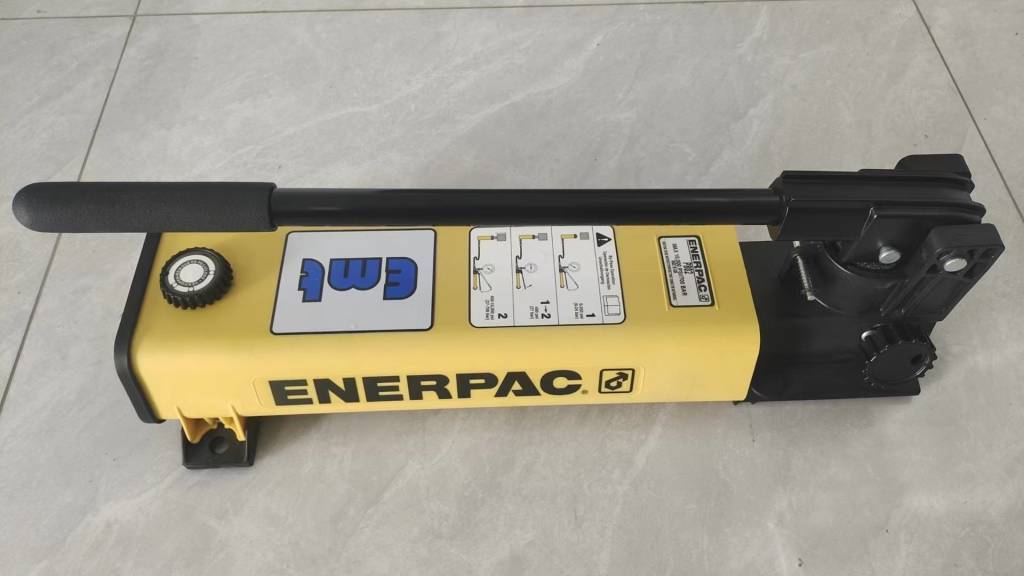

The retrieval tool is a double-acting hydraulic unit. A manual hydraulic pump pressurizes the cylinder, and the pressure gauge confirms stable holding pressure during the seal test. The tool connects to the pipeline through a fitting and a plug that carries the coupon. Sealing is self-energizing, so the assembly holds line pressure during insertion and retrieval. Coupons are typically disc-shaped and flush-mounted at the upper pipe wall, horizontal to the pipe, so they do not obstruct pigging. Surfaces are usually blast-cleaned to SA 2.5, and customers stamp a serial number on each coupon for traceability.

Parameter	Value	Note
Tool type	Double-acting hydraulic retrieval tool	Manual hydraulic pump driven
Seal test pressure	Pressurized and held 1-2 minutes	Pressure must stay stable
Coupon form	Disc-shaped, flush mounted	Upper pipe wall, horizontal
Surface finish	Blast cleaned to SA 2.5	Typical 120 grit
Minimum coupon thickness	Down to 1.6 mm	Depends on material and service
Material	SS316 and other alloys	Matched to pipe material
Traceability	Customer-stamped serial number	For tracking and records
Mounting	Coupon fixed on plug, run into fitting	Keeps line piggable

How Does It Work? + Where Should You Use It?

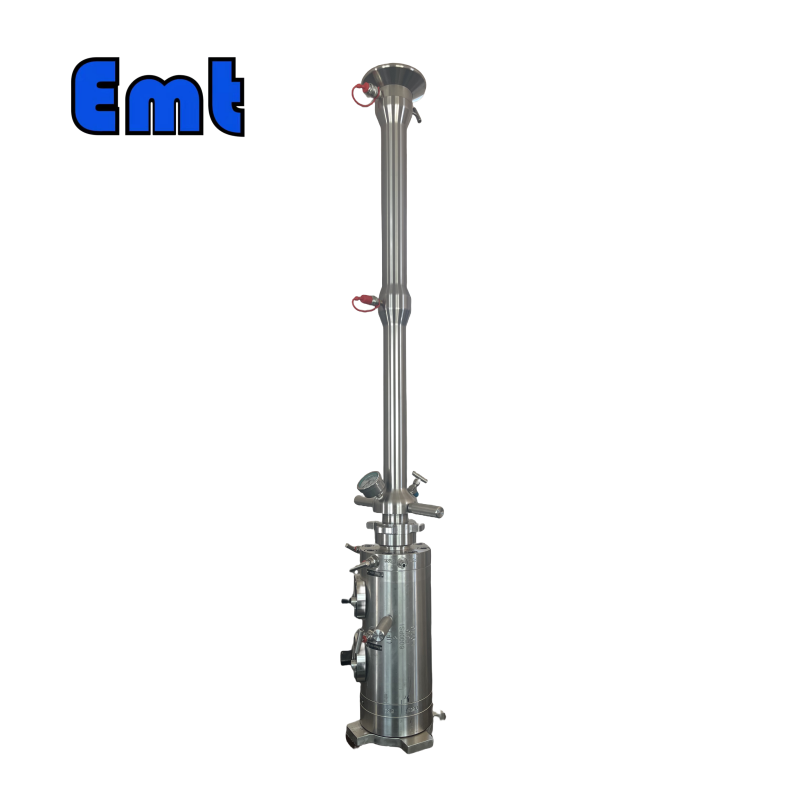

The coupon is fixed on a plug and pushed with the plug into the pipeline fitting body. The double-acting hydraulic retrieval tool drives the plug in and out under live pressure. Before each job, the operator pressurizes the tool with the manual hydraulic pump and holds for one to two minutes to verify internal seal integrity. Once inserted, the coupon sits flush at the top of the pipe and contacts the flowing medium.

Comparing mass loss or thickness change against exposure time gives the corrosion rate. Data supports maintenance decisions, verifies chemical treatment, and helps define pigging cycles.

Use scenarios include oil and gas gathering and transmission lines, refinery and petrochemical piping, water handling systems, and vessels where offline corrosion monitoring is preferred. The tool works alongside chemical injectors, chemical samplers, and corrosion probes. In sandy or contaminated service, clean the tool after every job to protect seals and wear rings.

4. Why Choose This Design?

• Retrieves coupons under live pressure, so production continues without shutdown.
• Double-acting hydraulic action gives controlled insertion and removal.
• Flush, piggable coupon mounting avoids obstructing pipeline pig runs.
• SA 2.5 surface finish supports consistent, repeatable corrosion data.
• Serial-numbered coupons enable full traceability and trend analysis.
• ASME U Stamp quality system backs every tool EMT manufactures.

5. Who Is EMT and Why Trust Us?

EMT is an oil and gas pipeline equipment manufacturer serving corrosion monitoring and chemical injection applications. We produce corrosion coupons, retrieval tools, chemical injectors, chemical samplers, and corrosion probes as one integrated product family, so components fit and work together. Also we are corrosion coupon retrieval tool manufacturer. Our manufacturing follows ASME requirements under our U Stamp certification, and we apply the same quality discipline to hydraulic retrieval tools.

Customers choose EMT for practical engineering support and consistent build quality. We help match coupon material and surface finish to your medium, and we advise on seal maintenance so tools stay reliable in the field. Our hydraulic retrieval tool maintenance guidance covers pre-use seal testing, cleaning frequency, full teardown, seal and wear ring replacement, lubrication, and rust-preventive storage.

We also meet customers at industry exhibitions, where we present our corrosion monitoring and chemical injection equipment and discuss project requirements face to face. To request a quotation, confirm compatibility with your fitting, or discuss a custom configuration, contact EMT through emt-pipe.com. Our team responds with technical details and lead times.

FAQ

What is a corrosion coupon retrieval tool for?
It installs and retrieves corrosion coupons in pressurized pipelines and vessels. The coupon is exposed to the process medium, then removed and weighed to calculate the corrosion rate without shutting down the line.

Can the tool retrieve coupons under live pressure?
Yes. The double-acting hydraulic retrieval tool works through a pipeline fitting and plug, and the self-energizing seal holds line pressure during insertion and retrieval.

Does the coupon obstruct pipeline pigging?
No. Coupons are typically disc-shaped and mounted flush at the upper pipe wall, horizontal to the pipe, so they do not interfere with pig runs.
