Description

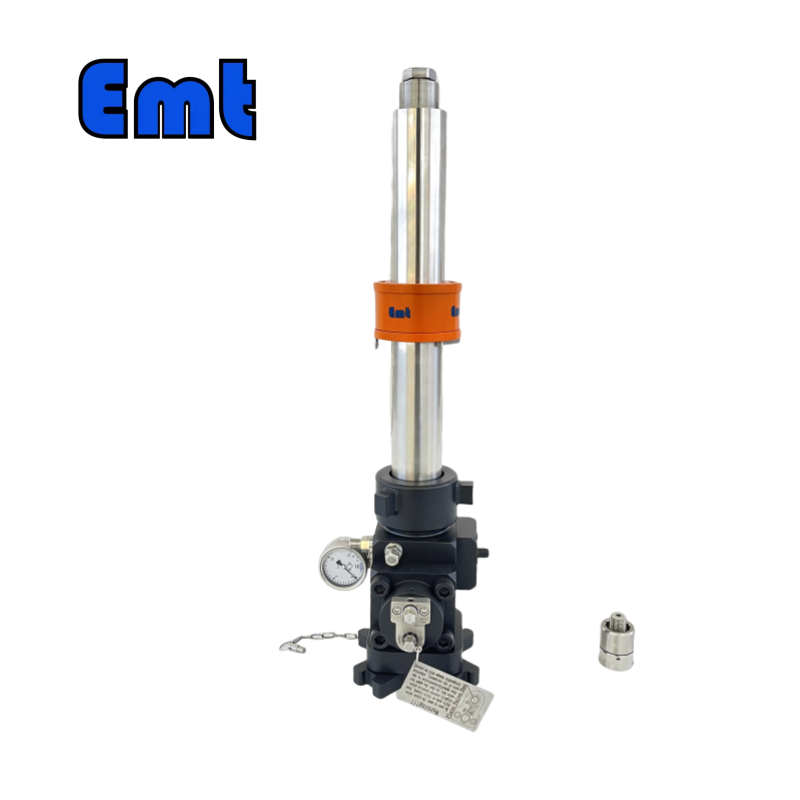

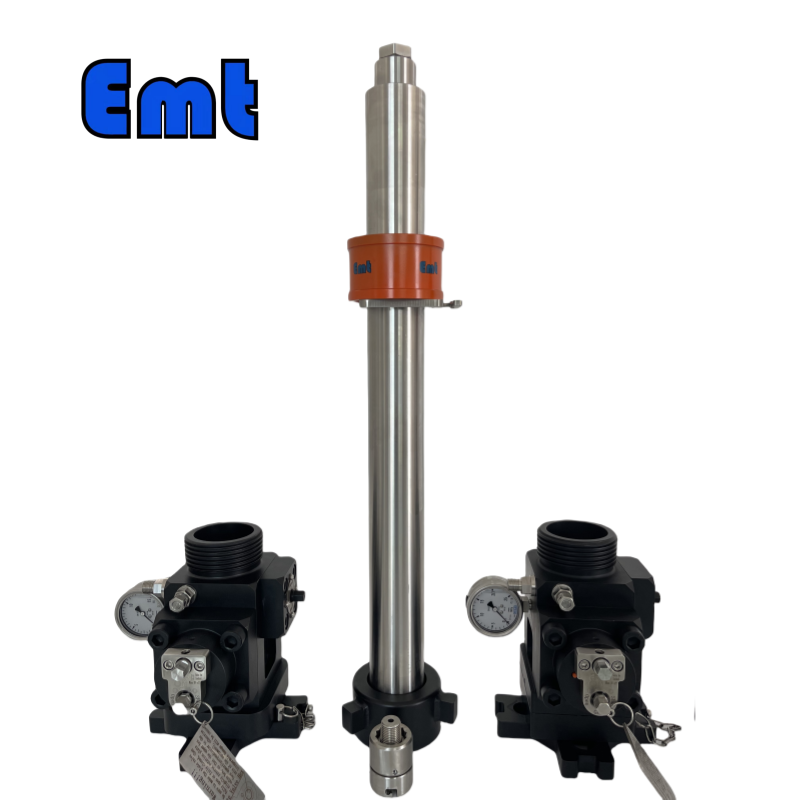

What is Retrieval Tool

Monitoring corrosion rates inside pipelines requires periodic retrieval of corrosion coupons. Doing this safely—without depressurizing the line—demands a purpose-built corrosion retrieval tool.

EMT’s retrieval tools are engineered for reliability in oil, gas, and water injection systems. The tool engages the coupon holder inside the retrieval system and extracts it through the service valve in a controlled, repeatable motion. No special training required—the ergonomic handle and positive-lock design guide the operator through each step.

The retrieval tool inserts through a full-port ball valve or service connection. A spring-loaded or magnetic tip engages the coupon holder. Once locked, the operator withdraws the assembly, closes the valve, and removes the coupon for analysis. The entire operation takes minutes and keeps personnel safely away from pressurized fluid.

Key Features

• High-Strength 316 Stainless Steel Body— Resists sour gas (H₂S) and brine exposure per NACE MR0175/ISO 15156 requirements.
• Positive-Lock Engagement Mechanism— Audible click confirms secure coupon holder capture before withdrawal.
• Dual O-Ring Stem Seal— Maintains pressure integrity during insertion and extraction cycles.
• Ergonomic Insulated Handle— Reduces operator fatigue and provides thermal protection during hot service.
• Compact Profile (Fits Standard Retrieval Systems)— Compatible with 1″, 1.5″, and 2″ coupon retrieval assemblies.
• Field-Serviceable Design— O-rings and engagement springs are user-replaceable with standard tools.

Technical Specifications

Parameter	Value
Body Material	ASTM A276 Type 316 SS
Stem Seal	FKM (Viton®) O-rings, dual
Maximum Working Pressure	1500 psi (103 bar) @ 75°F
Maximum Working Temperature	400°F (204°C)
Compatible Retrieval System Sizes	1″, 1.5″, 2″
Handle Type	Glass-filled nylon, ergonomic grip
Connection Type	Standard retrieval system interface
Weight (Typical)	2.3 kg (5.1 lbs)
Compliance	ASME B31.3, NACE MR0175

Where to Use It

• Crude Oil Pipelines— Routine corrosion coupon retrieval at monitoring stations
• Natural Gas Transmission— Sweet and sour service environments
• Water Injection Lines— Corrosion rate verification for chemical treatment programs
• Refinery Process Lines— Scheduled inspection without process interruption
• Offshore Platforms— Space-constrained retrieval operations

Why Choose EMT’s Corrosion Retrieval Tool?

Generic retrieval tools often lack the sealing integrity and lock certainty needed for high-pressure service. EMT’s design prioritizes two things: operator safety and repeatable performance. Every tool is pressure-tested before shipment and supplied with a documented test certificate.

Our retrieval tools are in service at pipeline operators across North America, the Middle East, and Southeast Asia. They integrate directly with EMT’s full corrosion monitoring product line—retrieval systems, chemical injection quills, and access fittings—giving you a single-source solution.

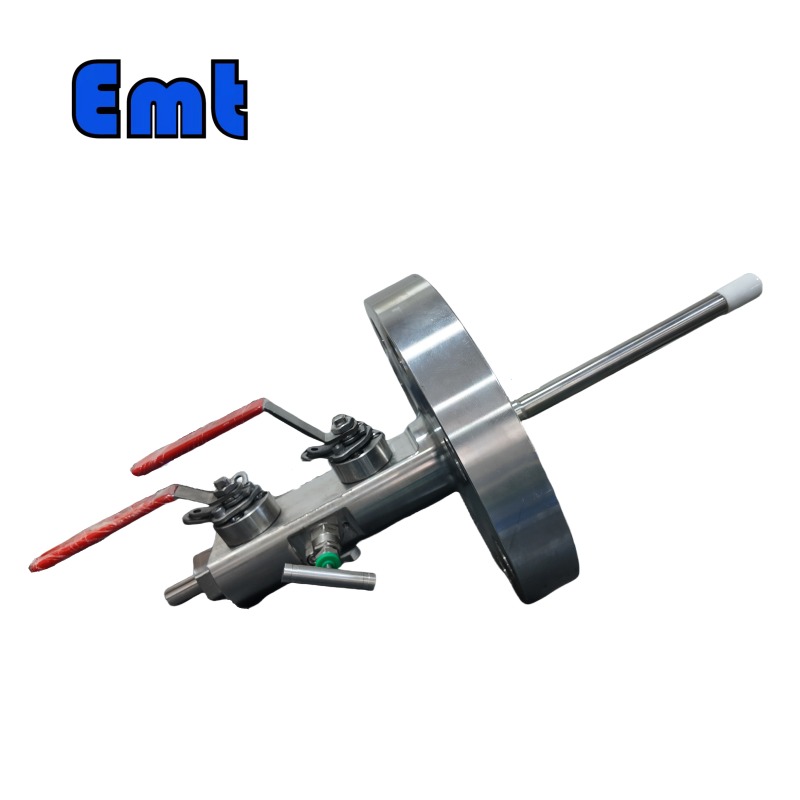

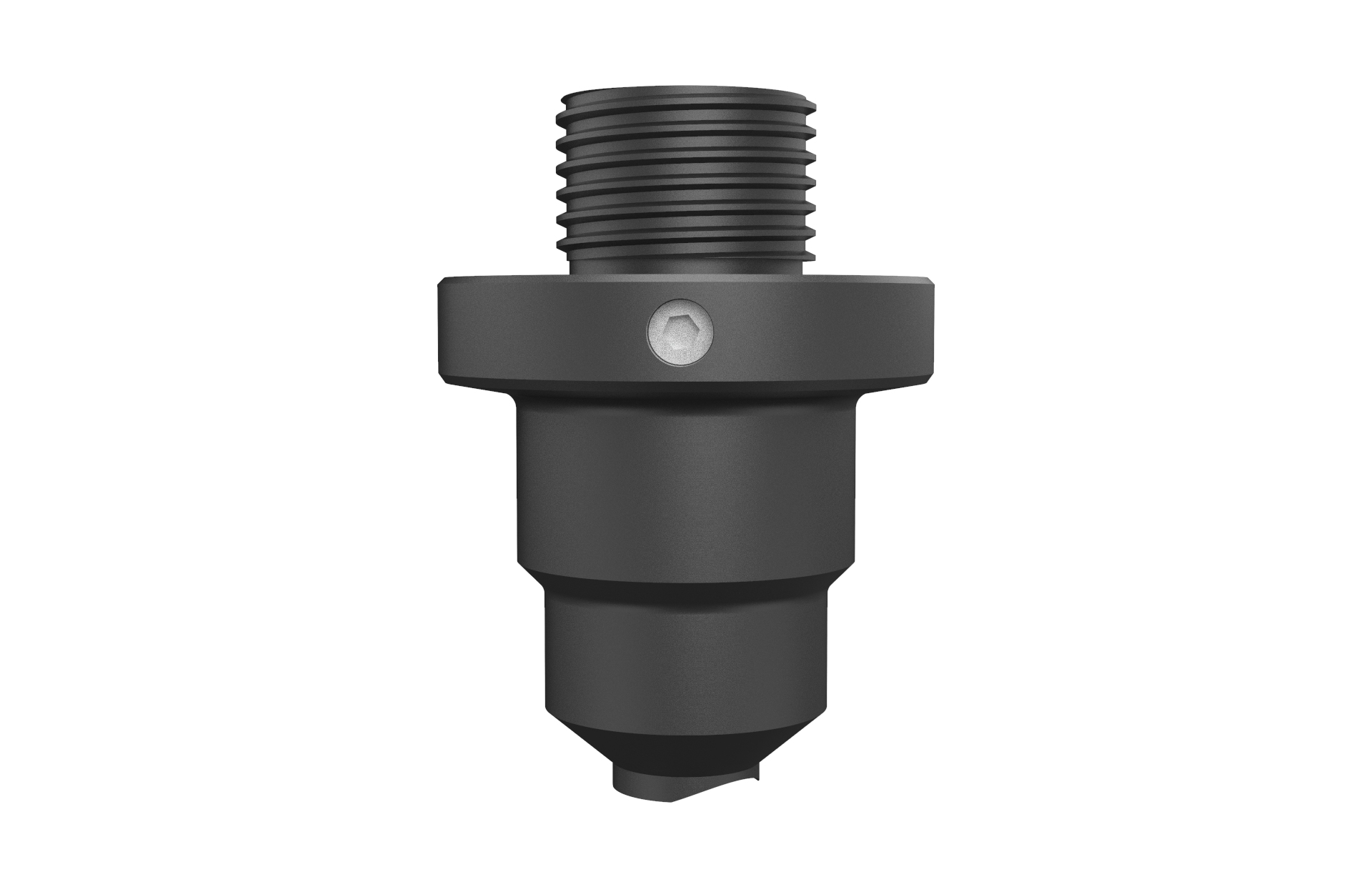

The following are the corresponding accessory products for purchase：

FAQ:

What is a corrosion retrieval tool used for?

A corrosion retrieval tool extracts corrosion coupons from a pipeline’s retrieval system without depressurizing the line. This allows operators to measure metal loss rates and adjust chemical treatment programs accordingly.

Is this tool compatible with all retrieval systems?

EMT’s corrosion retrieval tool is compatible with standard 1″, 1.5″, and 2″ retrieval system assemblies. If you use a non-standard size, contact us with your drawing for compatibility verification.

What pressure rating should I specify?

Select a tool rated for at least 1.5× your system’s maximum operating pressure. EMT tools are standard-rated to 1500 psi; higher-pressure versions are available on request.

How often should O-rings be replaced?

Inspect O-rings at every coupon retrieval cycle. Replace if any cut, swell, or hardening is visible. Keep a spare seal kit on-site for uninterrupted operation.

Can the tool be used on sour service (H₂S) lines?

Yes. The standard 316 SS construction with Viton® seals is suitable for NACE MR0175 sour service when specified. Always confirm H₂S partial pressure with our engineering team before ordering.
