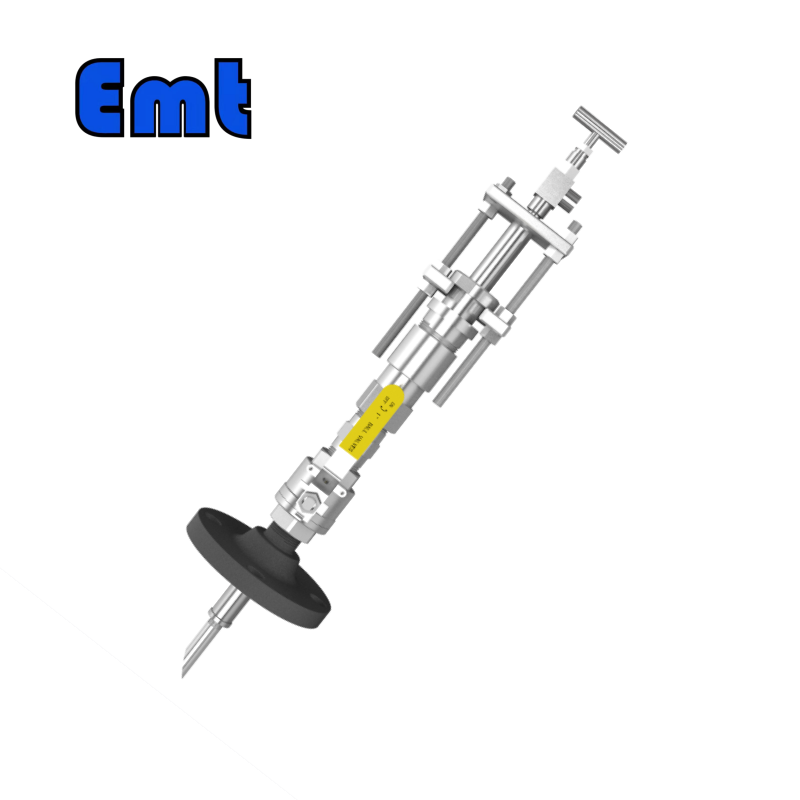

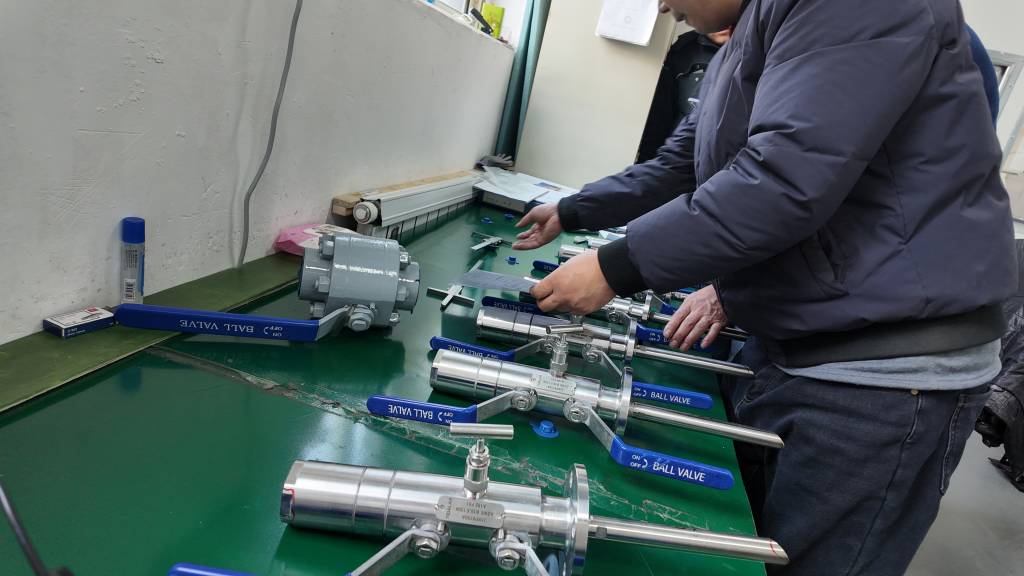

Retractable Chemical Injection Quill offers a vital solution for chemical treatment programs. It integrates seamlessly into pressurized pipeline systems. This device allows for the safe and efficient injection of various chemicals. Operators can insert or retract the quill under full line pressure. This eliminates the need for system shutdowns. It ensures continuous process operations. This capability prevents costly downtime. It also maintains pipeline integrity effectively.

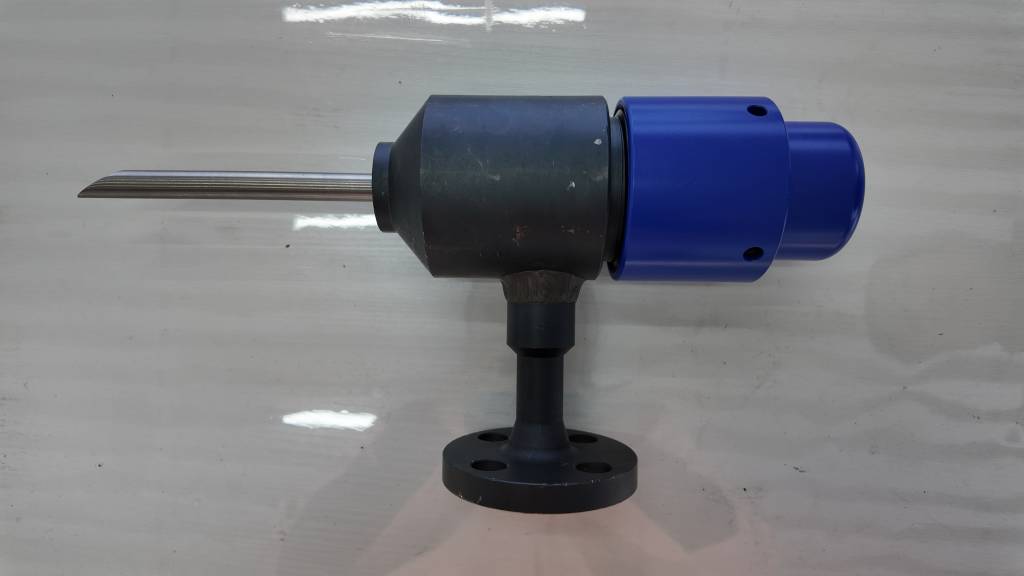

Technical Specifications

Our Retractable Chemical Injection Quill provides robust and reliable performance. We engineer it for demanding oil and gas environments.

• Body Material: 316L Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel. Also available in Alloy 625/825 for extreme conditions.
• Process Connection: Standard NPT sizes: 1/2″, 3/4″, 1″. Flanged connections conform to ANSI Class 150 to 2500 standards. API 6A connections are also available.
• Injection Line Connection: NPT sizes: 1/4″, 3/8″, 1/2″. This accommodates various chemical feed lines.
• Pressure Rating: Up to 6000 PSI (413 bar) is standard. We offer higher pressure ratings upon request.
• Temperature Range: Operates efficiently from -20°F to 400°F (-29°C to 204°C). This covers most operational needs.
• Insertion Length: Fully customizable from 6 inches to 48 inches. This allows precise chemical placement.
• Seal Type: Double O-ring seals with PTFE backup rings. They ensure leak-proof operation.
• Isolation Valve: Features a full port ball valve or needle valve. This provides reliable flow control.
• Safety Mechanism: Includes a positive locking device. A bleed valve safely releases trapped pressure.

Key Features & Benefits

Our Retractable Chemical Injection Quill delivers significant operational advantages. We design it for performance and safety.

• On-Stream Maintenance Capability: This quill allows operators to service or replace components. They perform these tasks under full line pressure. This eliminates the need for system shutdown. It significantly reduces operational costs. It also prevents production losses. This feature maximizes uptime for critical assets.
• Enhanced Safety Protocols: A robust safety interlock mechanism prevents accidental removal. This design ensures operator protection during insertion and retraction. An integrated bleed valve releases trapped pressure safely. It enhances workplace safety.
• Superior Material Selection: We offer a wide range of corrosion-resistant alloys. These materials ensure compatibility with aggressive chemicals. They also withstand various process fluids. This extends the service life of the entire injection system. It minimizes maintenance frequency.
• Optimal Chemical Dispersion: The quill’s precise design ensures effective chemical injection. It targets the center of the flow stream. This promotes uniform mixing. It maximizes the efficiency of the chemical treatment. This leads to better protection and reduced chemical consumption.
• Robust, Durable Construction: Each unit features heavy-duty components. They provide long-term reliability. Our quills perform well in harsh oil and gas environments. They withstand high pressures and extreme temperatures. This ensures consistent performance.
• Simplified Operation: An intuitive design facilitates quick installation and removal. Maintenance personnel appreciate its user-friendliness. This reduces labor time and complexity.

Typical Applications

This versatile device proves vital across the oil and gas sector. It supports various chemical treatment needs.

• Corrosion Inhibitor Injection: Protects pipelines, vessels, and equipment. It safeguards metal surfaces from corrosive elements.
• Scale Inhibitor Application: Prevents mineral scale buildup in production facilities. It maintains flow efficiency.
• Biocide Injection: Controls microbial growth within pipelines. This prevents blockages and microbiologically induced corrosion (MIC).
• Hydrate Inhibitor Delivery: Manages hydrate formation in gas transmission lines. It ensures uninterrupted gas flow.
• Wax Inhibitor Treatment: Prevents wax deposition in crude oil pipelines. This maintains optimal fluid transport.
• Process Additive Injection: Delivers various additives in refineries and processing plants. It optimizes specific industrial processes.

Why Choose EMT?

EMT manufactures high-quality pipeline accessories. Our Retractable Chemical Injection Quill exemplifies our commitment. We design it for superior reliability and performance. We adhere to stringent industry standards. Our products ensure safe and efficient operations for our clients. Contact us today. We can discuss your specific project requirements. We offer tailored solutions to meet your unique needs.
