Description

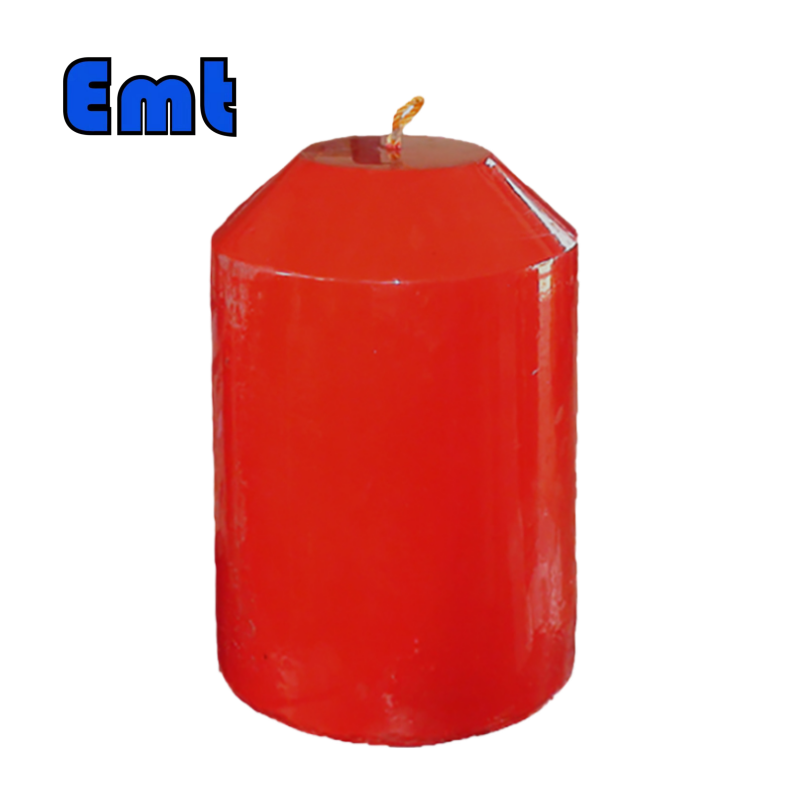

Our Polly foam Pig is an essential tool. It maintains optimal pipeline performance. We engineer these pigs for superior cleaning. They also efficiently dewater various pipelines. Our design ensures smooth, reliable operations. This pig is critical for pipeline integrity. It supports the entire pipeline lifecycle.

Technical Specifications

We provide precise technical data. This ensures proper pig selection. Our specifications meet stringent industry standards. We craft each pig for reliability.

• Material: High-density polyurethane foam. This ensures exceptional durability. It withstands harsh pipeline conditions.
• Density Range: 2 to 10 lb/ft³ (32 to 160 kg/m³). We offer various densities. This matches different cleaning needs.
• Coating Options: Bare, criss-cross polyurethane, wire brush, silicon carbide. Coatings enhance cleaning effectiveness. They address specific deposit types.
• Size Range: 2-inch to 48-inch nominal pipe sizes. Custom sizes are available upon request. We accommodate unique pipeline dimensions.
• Operating Temperature: Up to 180°F (82°C). Suitable for diverse operational environments. It handles moderate temperature fluctuations.
• Max Differential Pressure: Up to 100 PSI (6.9 bar). It withstands typical pipeline forces. This ensures consistent pig movement.
• Tracking: Optional pinger or magnetic transmitter. This allows easy pig location. It enhances operational control.
• Bypass: Controlled bypass for fluid flow. This prevents pig stalling. It also aids in debris removal.

Key Advantages & Features

Our Polly foam Pig offers distinct benefits. It enhances overall pipeline efficiency. We focus on practical, effective solutions. Each feature contributes to superior performance.

• Superior Cleaning Performance: This pig effectively removes internal deposits. It clears stubborn wax, scale, and rust. It also sweeps out construction debris. This ensures a clean internal pipe surface. A clean line reduces friction. It maintains optimal flow rates.
• Efficient Dewatering Capabilities: It excels at liquid removal. The pig clears water after hydrostatic testing. It also separates different products in batching operations. This capability significantly reduces drying time. It accelerates commissioning processes.
• Exceptional Flexibility: Its resilient foam body easily navigates tight bends. It passes through varying pipe internal diameters. This flexibility ensures passage in complex pipeline systems. It minimizes the risk of pigging tool entrapment.
• Robust Durability: We manufacture our pigs from high-quality, resilient foam. This material resists abrasion and chemical degradation. It provides a long operational service life. This reduces the frequency of replacements. It lowers overall maintenance costs.
• Lightweight and Easy Handling: The foam construction makes the pig remarkably light. This simplifies both insertion and retrieval. Operators manage it with less physical effort. This improves field safety and operational efficiency.
• Customization for Specific Needs: We tailor our pigs to unique pipeline requirements. You can specify density, coating material, and bypass configurations. This ensures optimal performance for your specific application challenges.
• Cost-Effective Maintenance: Deploying our foam pigs significantly saves operational costs. It dramatically reduces downtime for manual cleaning. It prolongs the operational life of your pipelines. This offers a strong, measurable return on investment.

Versatile Pipeline Applications

Our Polly foam Pig serves many critical applications. It supports various stages of the pipeline lifecycle. We engineer it for broad utility across the oil and gas sector.

• New Pipeline Construction: Pigs perform essential initial cleaning. They remove welding slag, mill scale, and construction debris. This prepares newly laid lines for safe service. It ensures a clean start for operations.
• Pre-Commissioning Activities: They efficiently dewater pipelines. This process occurs after hydrostatic testing. It ensures pipelines are thoroughly dry. This prepares them for product introduction. It prevents contamination.
• Routine Maintenance Operations: Use them for regular, preventative cleaning. They prevent the gradual build-up of deposits. This maintains optimal flow rates and reduces energy consumption. Regular pigging extends asset life.
• Product Separation and Batching: The pig effectively separates different products. It ensures distinct batches in multi-product pipelines. This maintains product purity. It optimizes transportation logistics.
• Preparation for Inline Inspection: Pigs meticulously clean lines before smart pig runs. This ensures accurate inspection data acquisition. It prevents potential damage to expensive inspection tools. It guarantees reliable integrity assessments.
• Hydrostatic Test Filling & Dewatering: They assist in precisely filling pipelines. They then effectively remove test water. This streamlines the entire hydrostatic testing process. It saves valuable project time.
• Clearing Residual Products: Pigs efficiently push out remaining product. This occurs during line shutdowns or product changeovers. It prepares lines safely for maintenance or a change of service. It minimizes product waste.

Why Choose Our Polly Pig?

EMT delivers reliable pipeline solutions. Our Polly foam Pigs meet rigorous industry standards. We commit to unwavering quality and superior performance. Our extensive expertise supports your critical operations. We help you achieve unparalleled pipeline efficiency. Contact us today for a tailored solution. We ensure your pipelines run smoothly and safely. Trust EMT for your pigging needs.
