Description

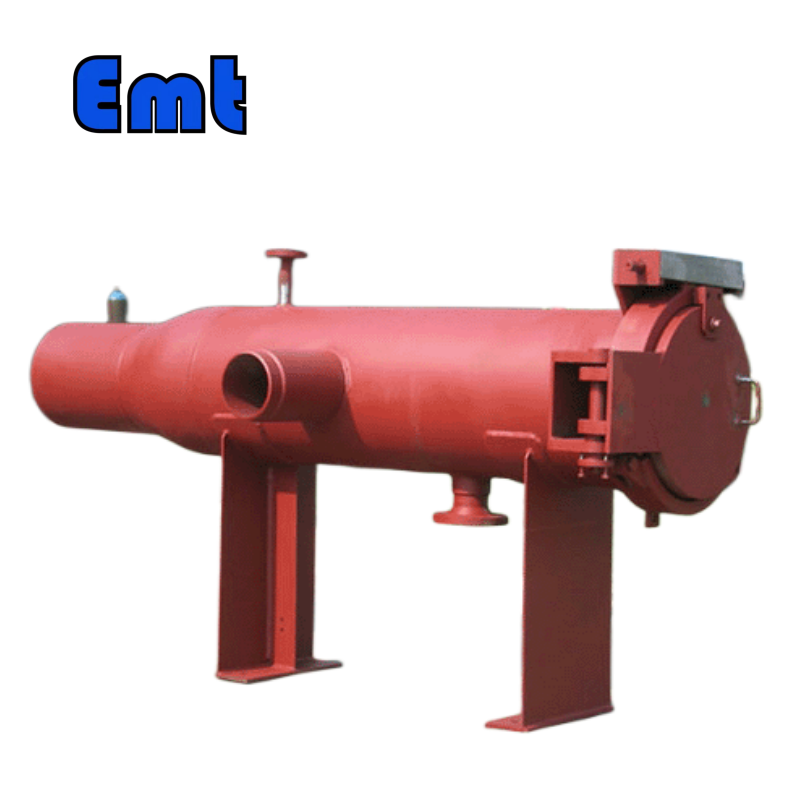

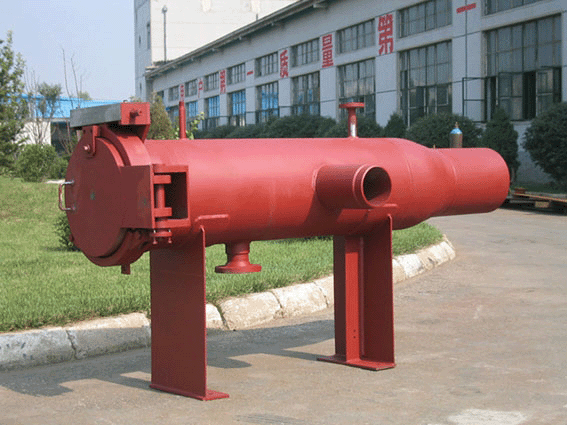

Pipeline Pig Launcher is an essential piece of equipment in the oil and gas industry. Operators use it to insert and launch pipeline inspection gauges (pigs) into a pipeline system. These pigs perform various critical tasks. They include cleaning, batching, and inspection. Our launchers ensure smooth and reliable pig deployment, maintaining pipeline integrity and operational efficiency.

Technical Specifications

We design our Pipeline Pig Launchers for robust performance. They meet stringent industry standards. Below are typical parameters for our products:

• Nominal Diameter: 2″ to 60″ (DN50 to DN1500)
• Design Pressure: ANSI Class 150 to Class 2500 (PN16 to PN420)
• Design Temperature: -20°C to +150°C (-4°F to +302°F)
• Material: Carbon Steel (e.g., A106 Gr. B, A333 Gr. 6), Stainless Steel (e.g., 304, 316), Duplex Stainless Steel
• Closure Type: Quick Opening Closure (QOC) – Bayonet, Clamp, or Threaded
• Sealing: O-ring, Lip Seal, or Gasketed
• Design Codes: ASME B31.3, B31.4, B31.8, ASME Section VIII Div. 1
• Corrosion Allowance: Typically 3mm
• Nozzle Connections: Flanged (ANSI B16.5) or Butt Weld (ASME B16.25)

Product Features

Our Pipeline Pig Launcher units offer superior functionality and reliability. We focus on enhancing operational safety and ease of maintenance.

• Safe Quick Opening Closures: We equip our launchers with robust quick opening closures. These provide secure sealing and allow for rapid, safe pig loading and unloading. An integrated safety interlock system prevents opening under pressure. This design ensures operator protection at all times.
• Optimized Design: The internal design facilitates smooth pig passage. This minimizes wear on both the pig and the launcher. Our engineers optimize barrel lengths and transition zones. This ensures consistent pig velocity and prevents damage during launch.
• Corrosion Resistance: We select high-quality materials for durability. External and internal coatings protect against harsh environmental conditions and corrosive media. This extends the service life significantly.
• Drain and Vent Connections: Operators find strategically placed drain and vent connections. These allow for safe depressurization and fluid removal before opening the closure. This feature improves operational safety and reduces potential spills.
• Pressure Monitoring: We include connections for pressure gauges and transmitters. This allows continuous monitoring of internal pressure. Operators can track system conditions accurately.
• Skid Mounted Options: We can provide units as skid-mounted assemblies. This simplifies installation and offers mobility for specific project needs. These pre-fabricated units reduce on-site construction time.

Maximizing Pipeline Operations

Choosing the right Pipeline Pig Launcher directly impacts pipeline efficiency. Our launchers reduce operational downtime. They streamline pigging operations, which saves valuable time and resources. We engineer each unit for long-term performance in challenging environments. Our experienced team understands the specific needs of the oil and gas sector. We provide reliable solutions that meet or exceed industry expectations. Our commitment to quality ensures a product you can trust for critical pipeline maintenance and inspection tasks.

Our Commitment to Quality

We consistently uphold high manufacturing standards. Our quality control processes are rigorous. Each Pipeline Pig Launcher undergoes thorough testing. This ensures flawless operation upon installation. We stand by the durability and performance of our equipment. We also offer comprehensive technical support. Our experts assist with installation, commissioning, and ongoing maintenance. Partner with us for reliable and efficient pipeline solutions. Contact us today for a detailed consultation.
