Description

1. Introduction

The EMT Pipeline Pig Detector is a sophisticated instrument designed for the efficient and accurate monitoring of pipeline pigs. Utilized primarily at pig launching and receiving stations, as well as critical points along pipelines, this device confirms the movement of pigs, ensuring the integrity and smooth operation of pipeline systems.

2. Key Attributes

• Industry-Specific Attributes:
  • Grade: Industrial
  • Warranty: 1.5 years
• Other Attributes:
  • Place of Origin: Liaoning, China
  • Customized Support: OEM, ODM
  • Brand Name: EMT Pigging
  • Model Number: SN2-TQZ
  • Material: Stainless steel

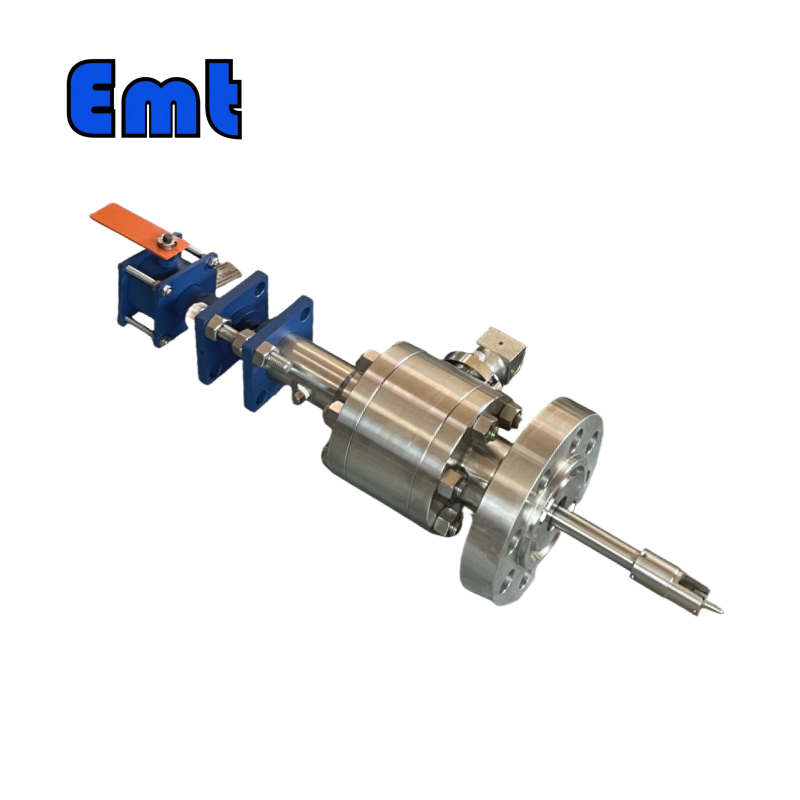

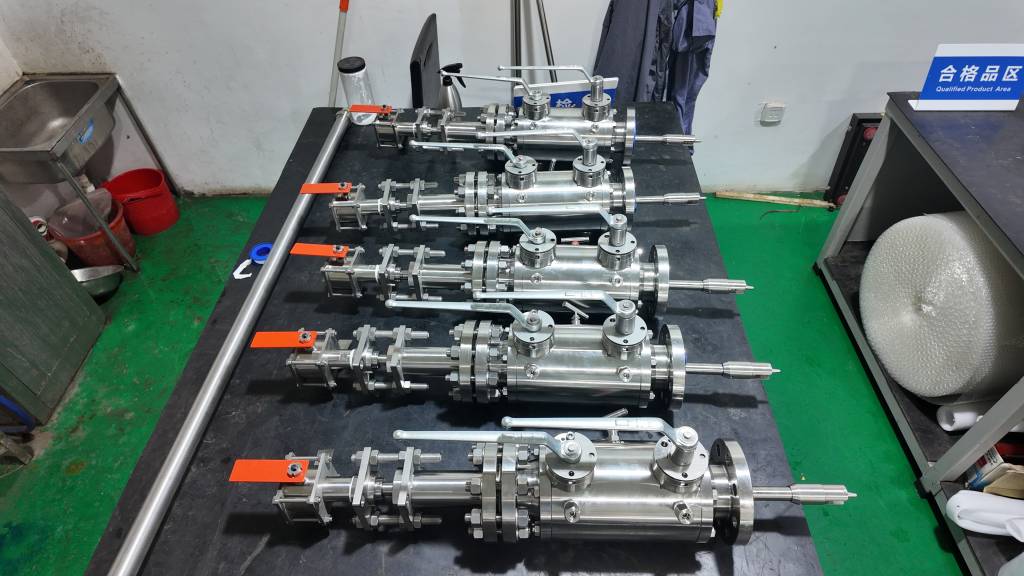

  • Product Name: Removable Flange Pig Signaller With Ball Valve

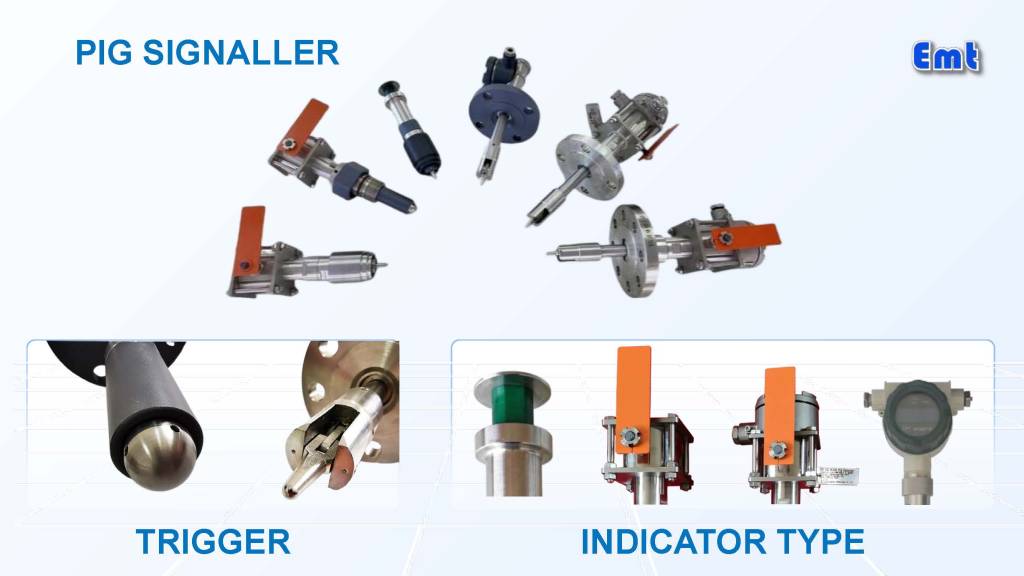

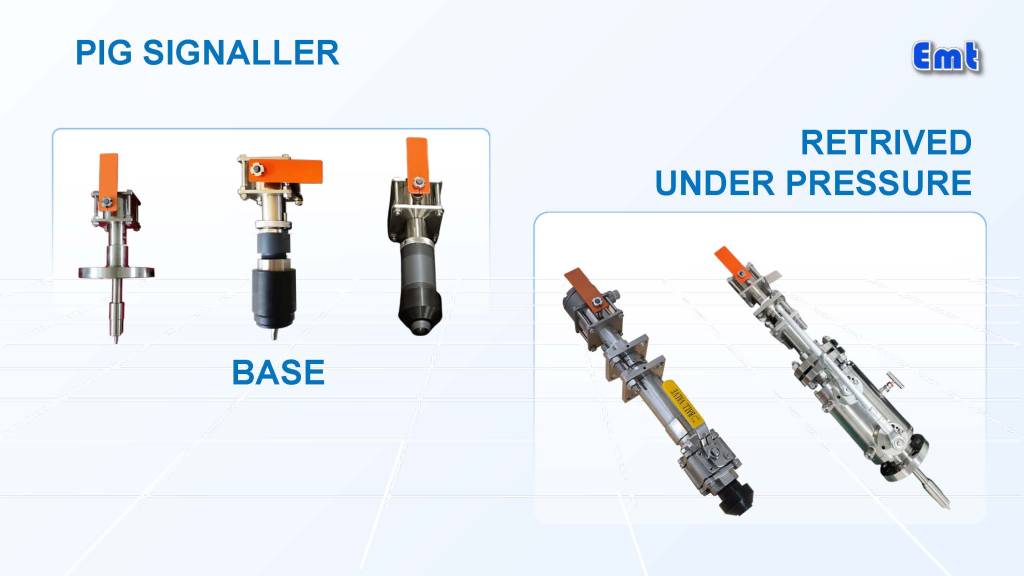

  • Trigger Type: Available in Bi-directional, Bi-directional Feather, and Uni-directional
  • Indicator Type: Manual reset flag, manual reset flag with electrical switch, and digital display with electrical switch
  • Installing Type: ANSI 2″/API 1 13/16″ flange
  • Design Pressure: ANSI up to 2500# / API 10000 Psi
  • Flange/Body Material: PTEF Coated A105N/304SS/316LSS/DSS/INCONEL /As per MR
  • Operating Temperature: -20℃ to +120℃
  • Remove Under Pressure: Yes
  • Feature: High Accuracy, Low Cost
  • Certification: ISO9001

3. Functionality and Design

Intrusive Monitoring Technology

Being an intrusive type detector, the workers install the EMT Pipeline Pig Detector directly into the pipeline. Then this placement allows for direct interaction with the pig, providing real-time and highly accurate feedback on its position. This method of monitoring is crucial for the precise control of pigging operations, ensuring that any movement of the pig is immediately registered and reported, reducing the risk of pig loss or blockages that could lead to pipeline damage or operational downtime.

Safety and Operational Integrity

The direct benefits of this magnetic sealing system extend beyond preventing leaks. By maintaining a secure and reliable seal, the detector ensures that external contaminants cannot enter the pipeline. This is critical in maintaining the purity of the pipeline’s contents, whether it be oil, gas, or any other substance. Moreover, the robust sealing mechanism reduces wear and tear on the device itself, enhancing its durability and decreasing the need for frequent maintenance or replacements.

Durability and Reliability

The construction of the EMT Pipeline Pig Detector, including its use of high-quality materials and components, we design it to withstand the physical stresses of pipeline operations. So this includes pressure fluctuations, mechanical stresses, and exposure to chemicals. Such durability ensures that the detector can operate reliably over long periods, even under harsh conditions, thereby safeguarding the investment and reducing the lifecycle cost of the monitoring equipment.

4. Key Advantages

High Accuracy

The EMT Pipeline Pig Detector is engineered for precision. Its ability to accurately detect the presence and passage of pigs minimizes the chances of false readings, which are critical for planning maintenance and avoiding unnecessary pipeline shutdowns. This high level of accuracy ensures operational continuity and enhances the overall efficiency of pipeline management by enabling timely and accurate decisions.

Low Operational Costs

This pig detector is designed to be economically efficient throughout its lifecycle. So the initial investment is optimized by the device’s extended operational life and low maintenance requirements. Its efficient design means fewer breakdowns and less downtime, which translates into reduced costs related to repairs and lost productivity. Additionally, the device’s accurate detection capabilities ensure that resources are not wasted on false alarms or unnecessary inspections.

Robust Construction

Constructed from high-quality materials such as PTEF-coated steel and available with options such as 304SS, 316LSS, DSS, or INCONEL, the EMT Pig Detector is built to withstand the rigors of harsh pipeline environments. These materials are chosen for their durability and resistance to corrosion, pressure, and extreme temperatures, ensuring that the detector can operate reliably in a variety of challenging conditions. This robust construction not only extends the lifespan of the device but also ensures consistent performance under stress, reducing the frequency and cost of replacements.

Resistance to Harsh Environments

The use of advanced materials and protective coatings enables the EMT Pig Detector to operate effectively even in environments exposed to corrosive substances or extreme weather conditions. This resistance is crucial for maintaining the integrity of the device and ensuring continuous operation without degradation in performance, which is particularly important in industries such as oil and gas where exposure to such conditions is common.

Customization to Operational Needs

The flexibility in choosing between different trigger types (bi-directional, bi-directional feather, and uni-directional) and indicator types (manual reset flag, combined electrical switch output, or digital display) allows users to tailor the detector to meet specific operational requirements. Additionally, this customization capability enhances the utility of the EMT Pig Detector across various pipeline systems and conditions. It also ensures that the device can be adapted to meet the unique challenges and preferences of each application.
