Locking Band Type Closure is a bandlock quick opening closure for pig launchers and receivers. It uses a locking band and safety interlock to seal pressurized vessels fast and safely. EMT builds it to ASME and NACE standards.

What Is Locking Band Type Closure?

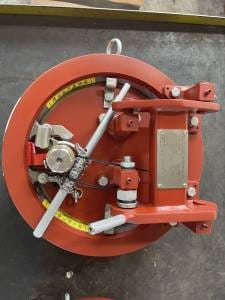

A Locking Band Type Closure is a bandlock quick opening closure that seals the end of pressure vessels such as pig launchers, pig receivers, and filter housings. EMT supplies it as a manufacturer-direct component for pipeline pigging and isolation systems across oil and gas projects worldwide.

The closure carries a locking band that wraps the hub and head to hold pressure. A built-in safety interlock blocks opening until internal pressure is fully released. This prevents dangerous pressurized operation during maintenance and protects crews who enter the vessel.

EMT offers three closure families: clamp type, locking band type, and latch type. The locking band type gives a compact, high-integrity seal for medium to large bore lines where fast, repeatable access matters most. EPCs specify it for turnkey pigging packages and brownfield retrofits.

Each unit is inspected and pressure-tested before shipment. We provide dimension drawings, installation guidance, and spare sealing kits to support field teams on every project.

What Are the Key Parameters?

Parameter	Specification
Body Material	Forged carbon or alloy steel, ASME-rated
Sealing Type	Self-energizing elastomer seal ring
Locking Mechanism	Circumferential locking band
Safety Feature	Pressure interlock, no opening under pressure
Applicable Standards	ASME, NACE MR0175 / ISO 15156
End Connection	Welded to vessel flange and hub
Opening Direction	Hinged or fully removable head

The forged body resists impact and cyclic load better than cast alternatives. Seals are field-replaceable, so planned shutdowns stay short and cost-controlled. Material certificates and weld maps travel with every order for audit and traceability.

How Does It Work?

The head seats against the vessel hub and the locking band rotates around the joint to clamp both faces. Internal pressure energizes the seal ring, so higher pressure improves sealing instead of breaking it.

A safety interlock reads vessel pressure. It stays locked while pressure remains, then releases only after the operator vents and confirms zero pressure. This removes the human-error path that causes closure accidents.

The band rides in a machined groove, so alignment stays consistent across hundreds of cycles. Routine greasing of the groove extends service life in dusty or saline sites.

Where Should You Use It?

Use the locking band closure on pig launchers and receivers in oil and gas transmission. It fits filter separators, meter skids, and storage tank manways that need frequent, repeatable access.

It suits corrosive service when specified in NACE-compliant material. Operators choose it for offshore and onshore pigging systems where uptime and safe entry drive the design.

Common line sizes span small meter runs to large trunk pipelines. The closure also serves manifold and test-loop isolation where quick entry reduces shutdown time.

Who Is EMT and Why Trust Us?

EMT is a Shenyang manufacturer of pipeline pigging and isolation equipment with ASME U Stamp certification, and we exhibited at ADIPEC 2025 in Abu Dhabi. Our workshop controls welding, heat treatment, and hydrotest in-house, which keeps quality and delivery predictable for EPC schedules. Contact sales@emt-pipe.com for drawings, datasheets, and quotes.

FAQ

What is the difference between locking band and clamp type closure?
The clamp type uses segmental clamp segments; the locking band uses a continuous band. Band type offers a more compact head for the same bore and simpler field rotation.

Can the closure open under pressure?
No. The safety interlock locks the head until internal pressure is vented and confirmed at zero, eliminating pressurized opening.

Does EMT supply NACE-compliant material?
Yes. We specify NACE MR0175 / ISO 15156 material for sour and corrosive service on request, with full material traceability.
