Description

What Is a Lock Ring Closure

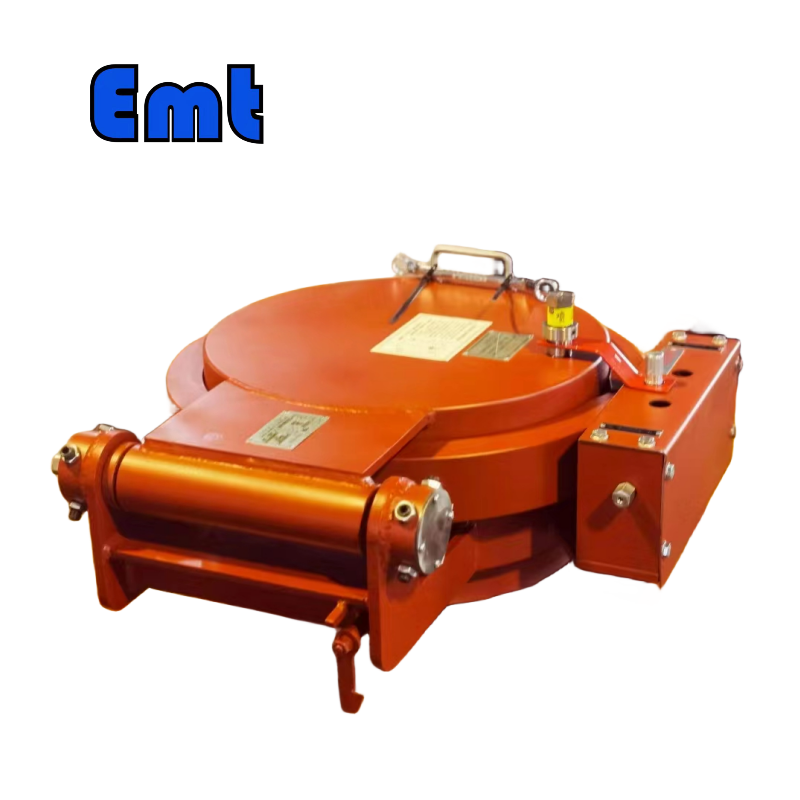

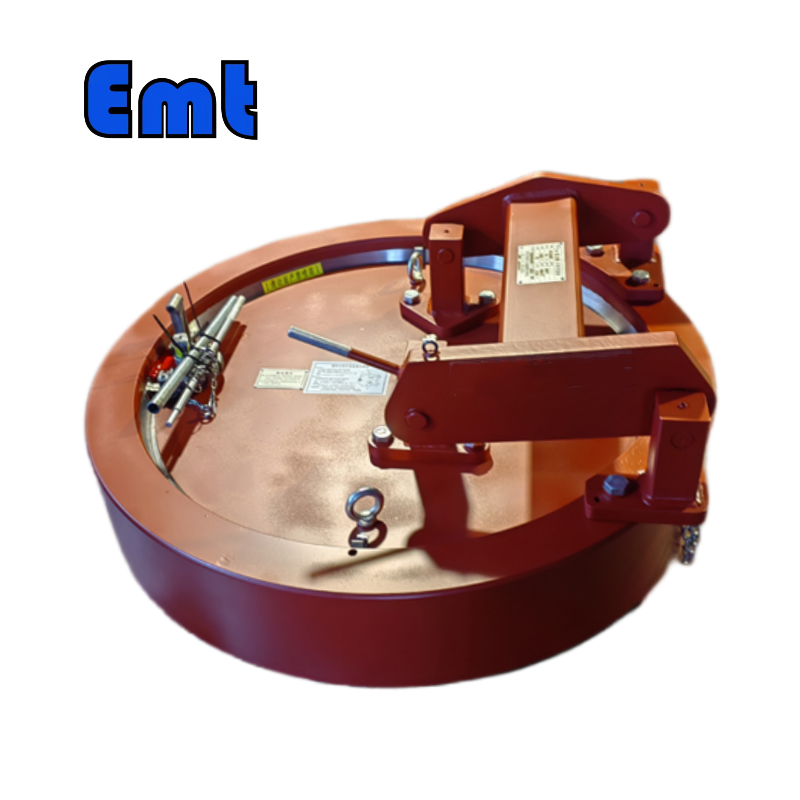

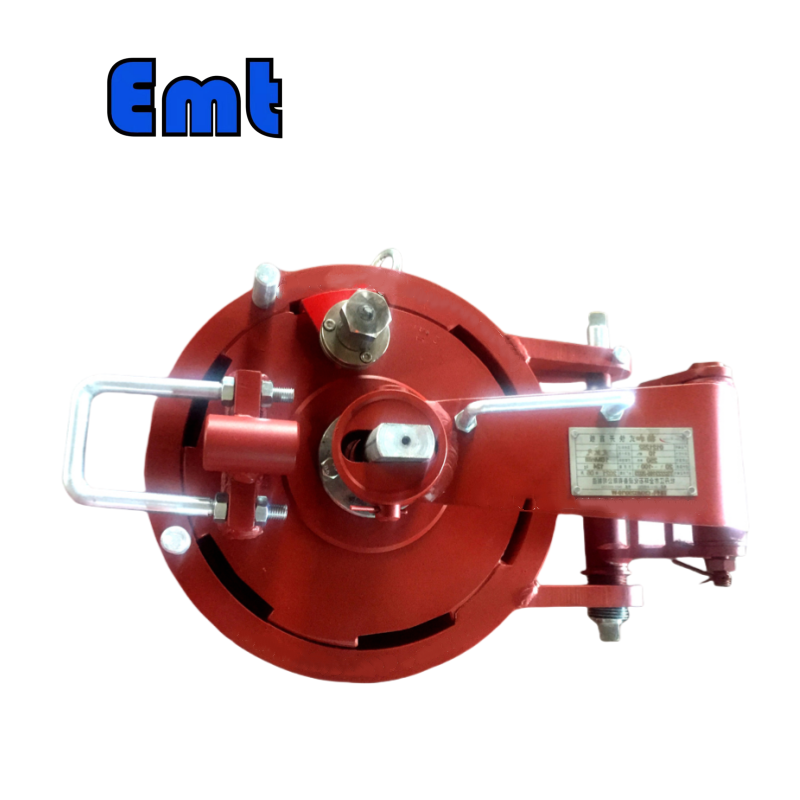

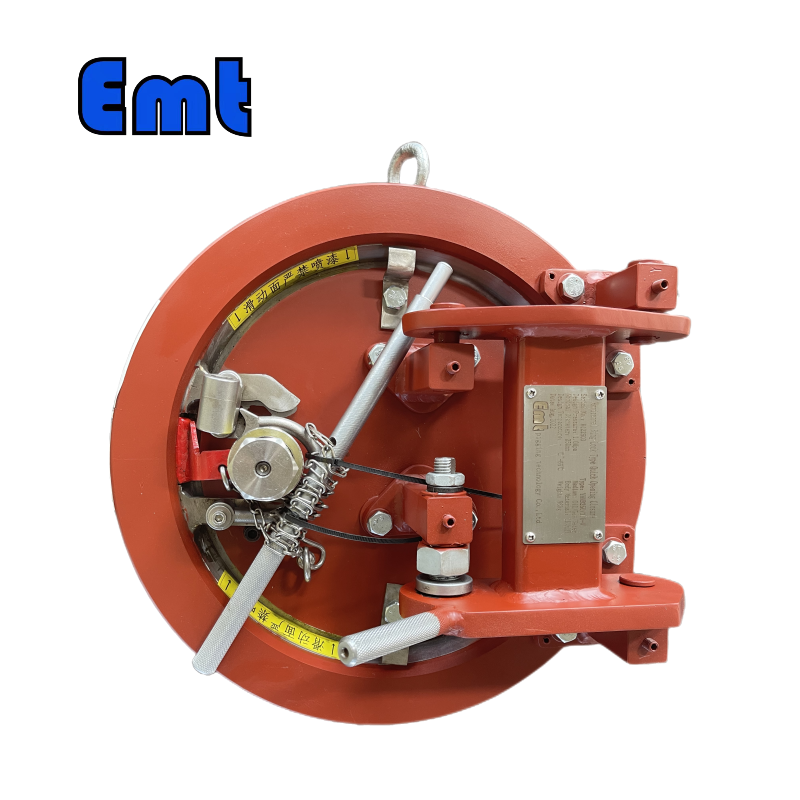

The Lock Ring Closure is a quick opening closure designed to deliver fast, reliable access to pressurized pipeline systems. The bandlock design uses an expanding lock ring to engage the cylinder flange and head cover. Operators rotate a single locking lever to drive the ring into position. This locks the head cover firmly against internal pressure — no bolt tightening or flange alignment required.

Each open-and-close cycle takes minutes and needs no special tools. The head cover seats consistently against the cylinder flange on every operation. This repeatable sealing performance reduces leakage risk over extended service life and cuts downtime during pipeline inspection and maintenance.

EMT manufactures this lock ring type closure in three types to match different operating conditions and pipe specifications.

Specifications at a Glance

Key technical parameters are listed below for reference.

Range / Value	Range / Value
Nominal Diameter	DN150 – DN1500 (NPS 6 – NPS 60)
Design Pressure	Up to 15 MPa (Class 150 – Class 2500)
Design Temperature	−20 °C to +100 °C
Seal Material	Nitrile rubber (NBR) O-ring
End Connection	Flanged or butt-weld
Standard Compliance	ASME VIII, SY/T 0556-2018
Certification	ASME U Stamp
Safety Interlock Starting Pressure	≥ 0.1 MPa
Safety Interlock Fatigue Life	> 5,000 cycles
Calibration Interval (outdoor)	Every 3 months
Calibration Interval (indoor)	Up to 6 months



All units carry the ASME U Stamp and ship with a patented safety interlock device . EMT engineers each closure to the customer’s design pressure, temperature, and end-connection requirements.

Three Closure Types for Every Application

EMT offers lock ring, bayonet, and clamp closure configurations to cover a broad range of pipeline service conditions.

Lock Ring Type — The lock ring closure is the flagship product in our lineup. The lock ring engages the cylinder flange through a full-circumference interface. This design distributes pressure load evenly across the entire ring. It suits large-diameter, high-pressure applications in gas transmission pipelines and offshore topsides.

Bayonet Type — The bayonet type uses interlocking lugs on the head cover and cylinder. Engagement requires only a short rotation of the head cover. This type suits moderate-pressure vessels where fast cycling and compact overall dimensions are both priorities. It is commonly used on scraper receiver barrels and chemical injection vessels.

Clamp Type — The clamp type secures the head cover with a hinged clamp band and a safety bolt assembly. It is well suited for small-bore applications and situations where the closure is accessed frequently at ground level. Installation is straightforward, and all components are easy to inspect and replace in the field.

Each type carries a dedicated safety interlock matched to its specific locking geometry.

How Does Lock Ring Closure Work?

The safety interlock device prevents two critical operator errors. First, the system blocks pressurization if the closure is not fully closed. Second, it prevents opening while internal pressure remains above 0.1 MPa.

The interlock operates on a pneumatic piston principle. When internal pressure exceeds 0.1 MPa, the piston rod drives the bolt cap outward into free-spin state. Rotating the cap does not move the bolt body, so the closure stays locked. When pressure drops below the return threshold, the piston retracts and the bolt cap re-engages the bolt sleeve. The operator can then remove the interlock and open the closure safely.

This mechanism meets the mandatory interlock requirements of SY/T 0556-2018 and aligns with ASME guidelines for pressure vessel access safety.

About Our Company

Shenyang EMT Piping Technology Co., Ltd. specializes in manufacturing lock ring closures, quick opening closures, and a full range of pipeline pigging equipment. With over 30 years of industry experience dating back to 1993, EMT holds the ASME Certificate of Authorization and ISO 9001 certification, ensuring every product meets international pressure vessel and pipeline standards.

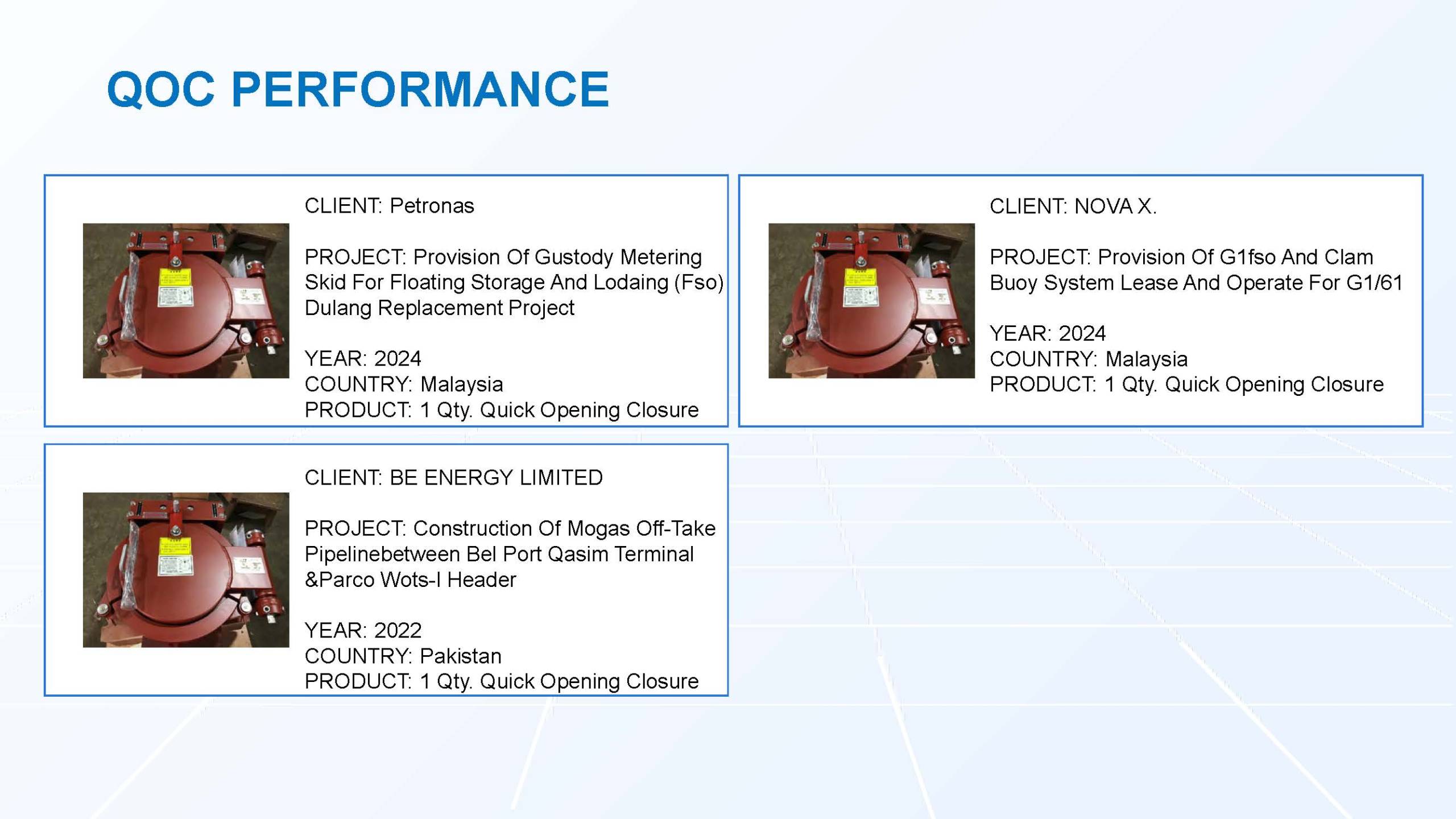

Operators across Southeast Asia and the Middle East — including Malaysia, Indonesia, Qatar, and the UAE — trust our quick opening closures for high-pressure oil and gas pipeline operations. By supplying factory-direct, we offer competitive pricing alongside full material traceability and third-party inspection reports available on request.

Whether you require standard configurations or custom-engineered solutions, our technical team is ready to support your project from initial specification through to final delivery. Contact us today to discuss your requirements or request a product datasheet.
