Description

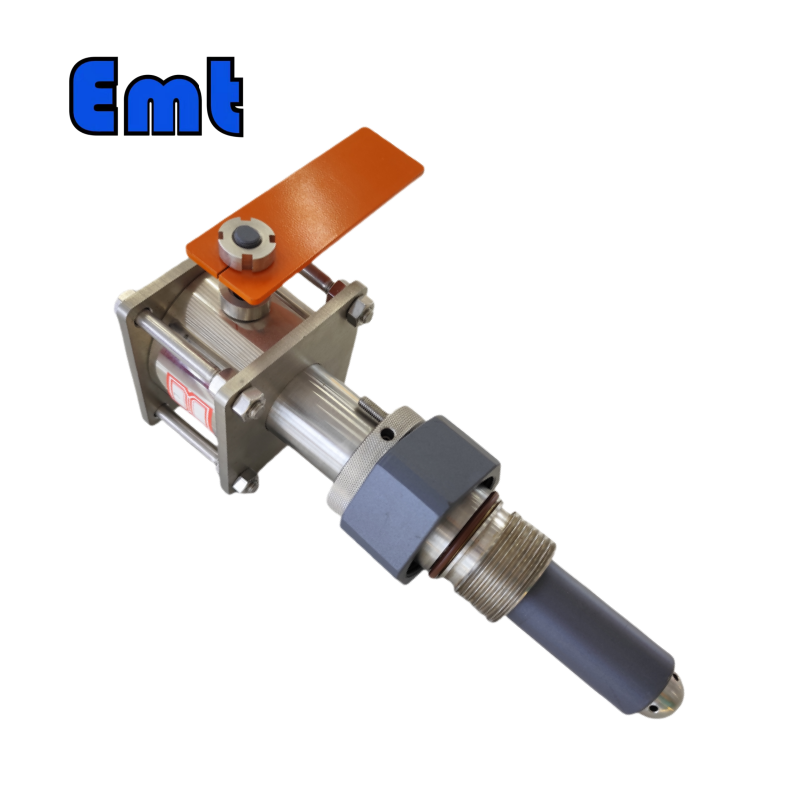

Intrusive Pig Signaller Welded Connection reliably detects pig passage within pipelines. This essential device provides crucial real-time information for pipeline operators. It confirms the successful completion of pigging operations, ensuring effective pipeline maintenance and integrity. Operators rely on this robust signaller for critical data, facilitating smooth and efficient flow assurance.

Key Performance Data

We design our Intrusive Pig Signallers for demanding environments. They offer exceptional durability and consistent performance. Our welded connection models meet stringent industry specifications.

• Pipeline Sizes: Suitable for lines ranging from 2 inches to 60 inches. We offer custom sizes upon request.
• Pressure Rating: Up to ANSI Class 2500 (6170 psi / 42.5 MPa). Our design ensures high-pressure integrity.
• Temperature Range: Operates effectively from -40°C to +200°C (-40°F to +392°F). This broad range covers most pipeline conditions.
• Material Construction: Wetted parts are typically 316L Stainless Steel. Other materials are available for specific applications.
• Connection Type: Welded stub for permanent, high-integrity installation. This ensures a leak-free interface.
• Indicator Types: Visual flag, electrical switch (SPDT/DPDT), or a combination of both. Operators choose the best option for their needs.
• Certifications: Available with ATEX, IECEx, and SIL ratings. These certifications confirm suitability for hazardous areas.

Superior Design Features

Our Intrusive Pig Signaller boasts a design focused on performance and longevity. We engineer each unit for maximum reliability in harsh conditions. The robust construction withstands extreme temperatures and pressures common in oil and gas pipelines. This design minimizes the need for frequent maintenance. Operators experience fewer interruptions and reduced operational costs.

The signaller features a robust trigger mechanism. This mechanism ensures accurate pig detection every time. It prevents false indications, providing operators with trustworthy data. We offer both mechanical and electronic outputs. Mechanical indicators give local visual confirmation. Electronic outputs integrate seamlessly into control systems. These dual capabilities enhance operational flexibility. Our design simplifies field adjustments, saving time during commissioning. The sensing element retracts easily for maintenance, a critical feature for ongoing operations. This feature allows for servicing without depressurizing the pipeline.

Secure Welded Connection

The welded connection model offers unparalleled pipeline integrity. This permanent attachment eliminates potential leak paths often associated with threaded or flanged connections. A full penetration weld creates a robust, leak-proof seal. This design choice significantly enhances safety for personnel and the environment. Operators gain peace of mind from its secure installation.

Welding the signaller directly to the pipeline ensures maximum stability. This prevents vibration-induced loosening over time. It makes the Intrusive Pig Signaller Welded Connection ideal for critical applications. These applications demand the highest level of reliability. The welded design provides a long service life, resisting corrosion and fatigue. This permanence translates into lower long-term ownership costs. It reduces the need for frequent checks or re-tightening. Our technicians perform the welding according to industry best practices. This guarantees a secure and durable attachment.

Optimizing Pipeline Operations

Implementing our Intrusive Pig Signaller Welded Connection improves your pipeline operations. Accurate pig tracking optimizes cleaning and inspection schedules. It helps prevent costly delays and minimizes downtime. Real-time feedback allows operators to react quickly to pigging events. This proactive approach enhances overall pipeline efficiency. We help maintain consistent flow rates and reduce operational risks.

Choosing our signallers means investing in quality and reliability. We provide expert support from selection through installation. Our commitment ensures seamless integration into existing systems. This product stands as a testament to our dedication to pipeline integrity solutions. Trust our experience to keep your pipelines running safely and efficiently. We empower operators with the tools they need for successful pigging operations.
