When it comes to maintaining pipeline integrity and optimizing production in the oil and gas industry, Injection Quills play a critical role. These precision-engineered components ensure accurate delivery of treatment chemicals directly into the center of high-pressure flow lines. Whether you’re managing corrosion inhibition, hydrate prevention, or wax deposition control, selecting the right chemical injection quill can significantly impact your operational efficiency and equipment longevity.

What Are Injection Quills and Why Do They Matter?

Injection quills are specialized fittings designed to introduce chemicals into pressurized pipelines or vessels. Unlike standard injection points, these devices extend into the flow stream, ensuring:

• Optimal chemical dispersion – Delivering treatment agents to the pipe center where they mix most effectively
• Reduced wall contact – Minimizing corrosion risks at the injection point
• Enhanced safety – Preventing backflow and ensuring controlled injection rates

For procurement professionals in the petroleum sector, understanding the technical specifications of these components is essential for making informed purchasing decisions that align with operational requirements.

Key Product Specifications and Variants

Our injection quill product line is engineered to meet diverse operational demands across upstream, midstream, and downstream applications. Rather than offering one-size-fits-all solutions, we provide customizable configurations tailored to your specific operational requirements.

Standard Configuration Options

Connection Types

• Threaded connections (NPT/BSP) for standard pipeline installations
• Flanged connections (ANSI/ASME/DIN) for high-pressure applications requiring secure sealing
• Weld-in fittings for permanent installations in critical process lines

Material Grades

• 316/316L Stainless Steel – Standard option for general chemical injection applications
• Duplex 2205 – Enhanced corrosion resistance for sour service and chloride-rich environments
• Inconel 625 – Premium alloy for extreme temperature and aggressive chemical compatibility
• Other alloys available upon request for specialized chemical compatibility requirements

Insertion Lengths
Custom-engineered insertion depths ensure optimal chemical dispersion based on your pipeline diameter:

• Short-insertion designs for small-bore pipes (2-6 inches)
• Medium-insertion for standard transmission lines (8-24 inches)
• Extended-reach options for large-diameter pipelines (30+ inches)

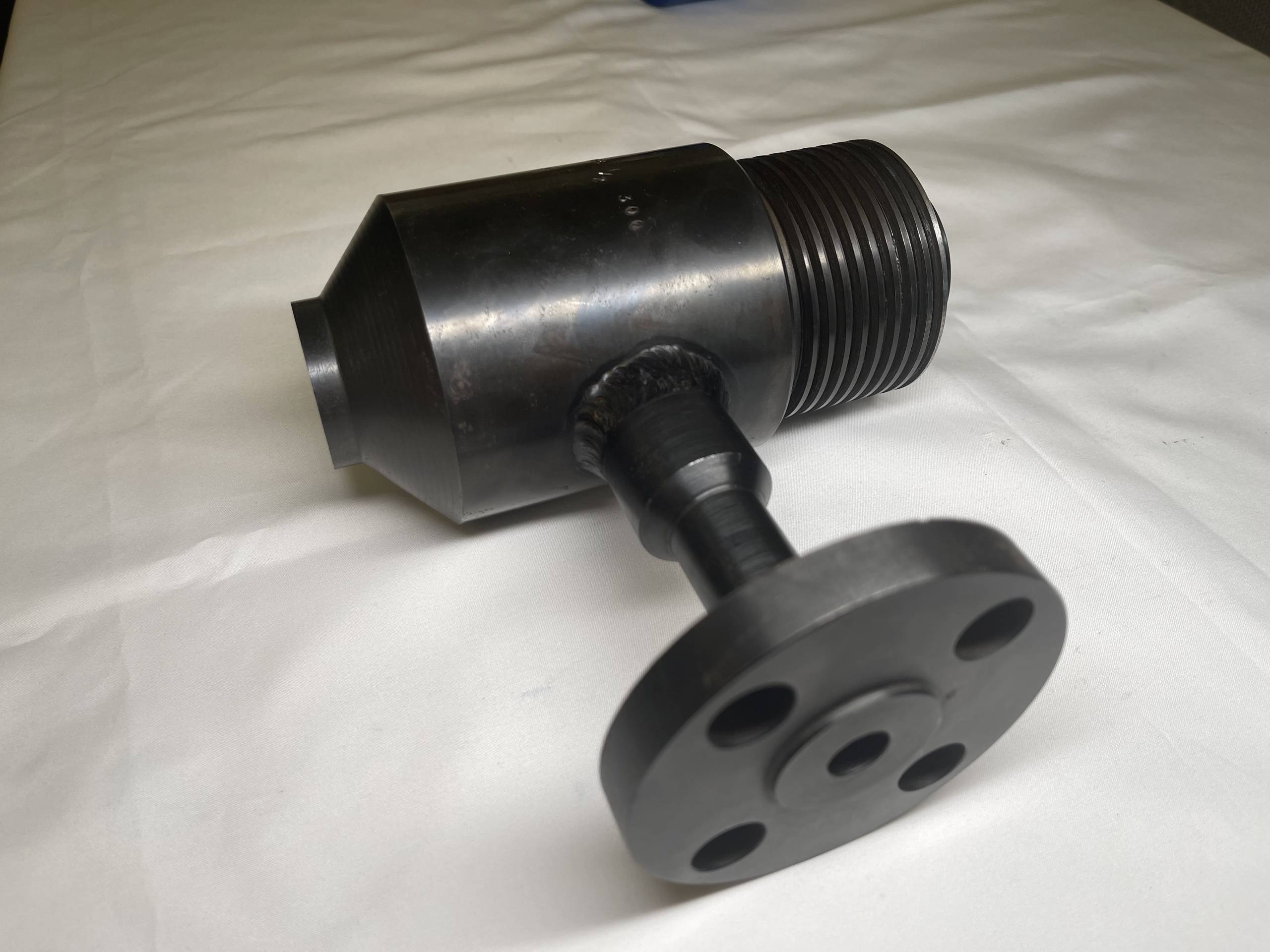

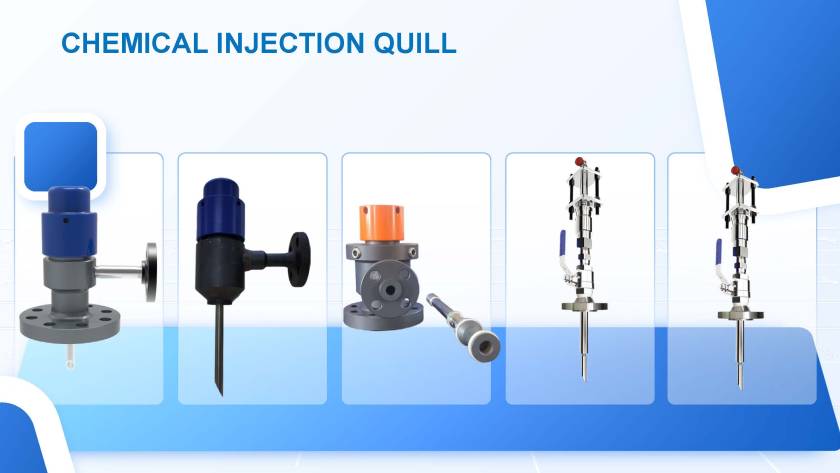

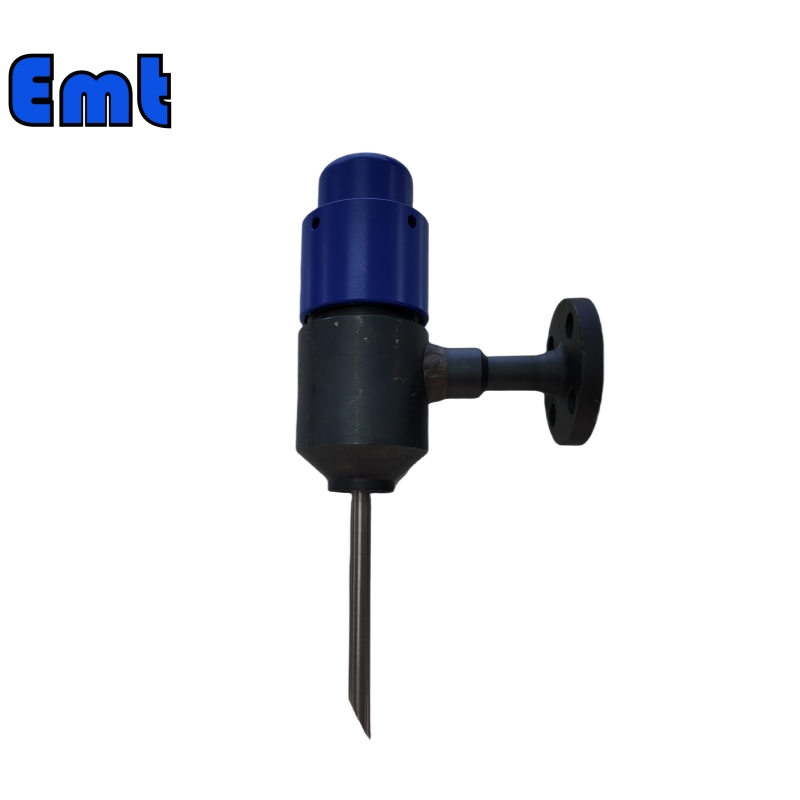

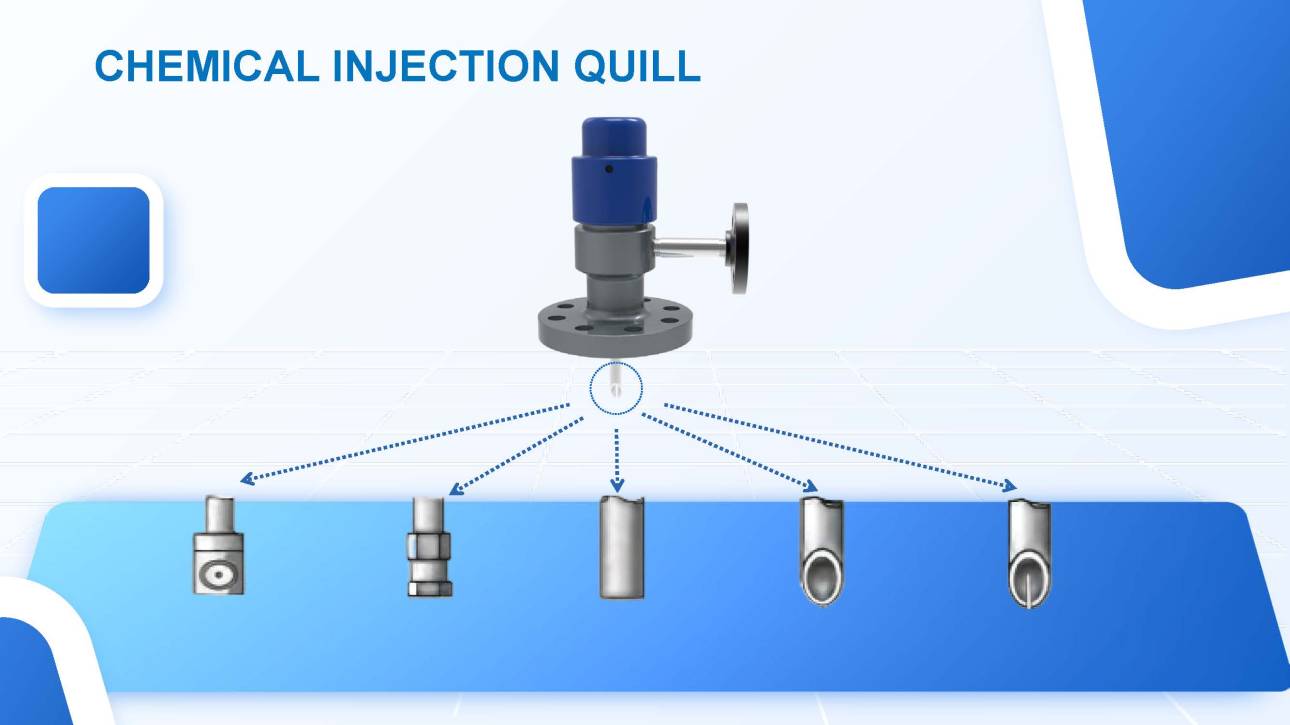

Design Variations

Fixed Injection Quills
Permanent installation design for applications where the injection point remains constant. Features simple, robust construction with minimal maintenance requirements.

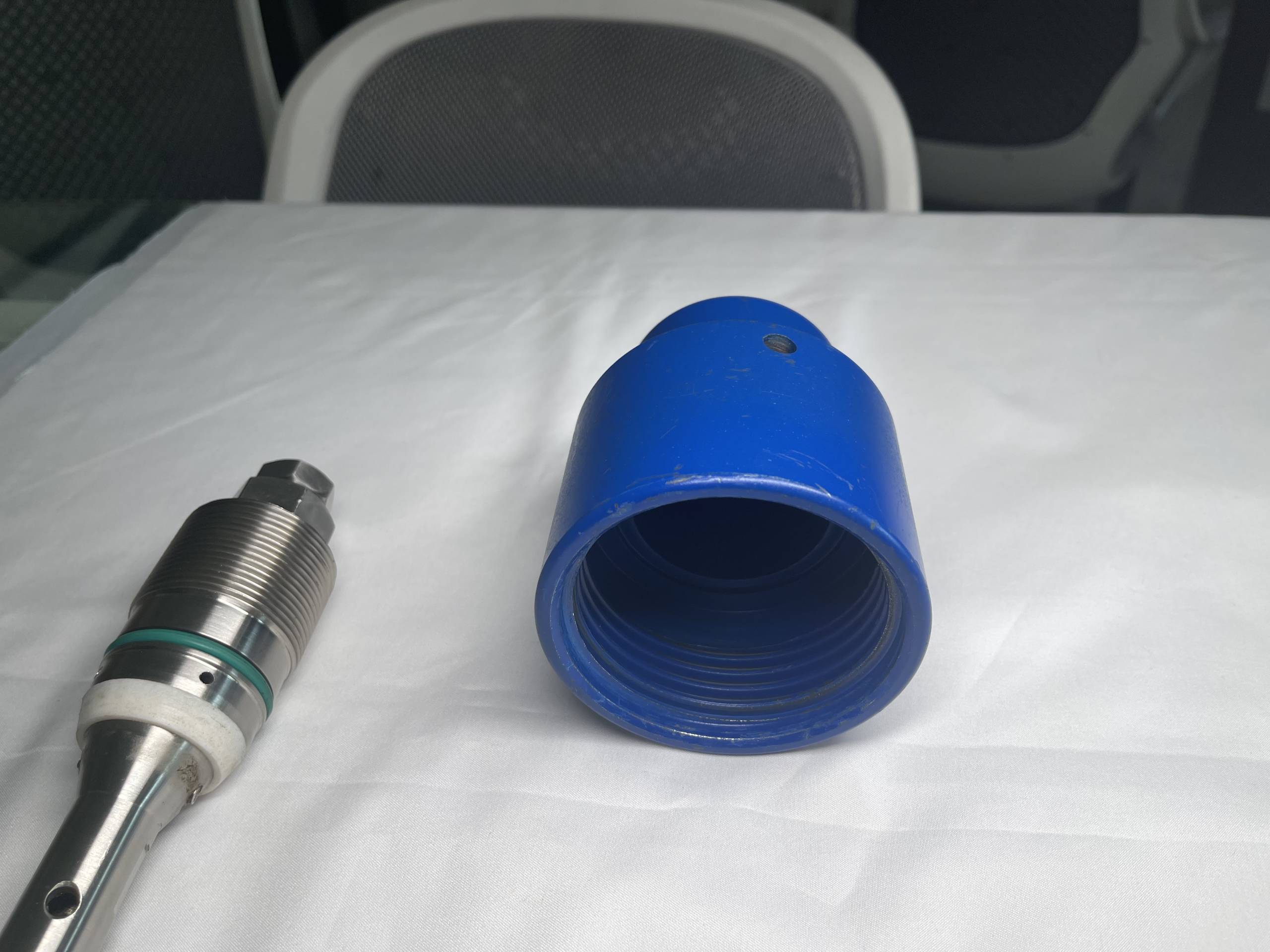

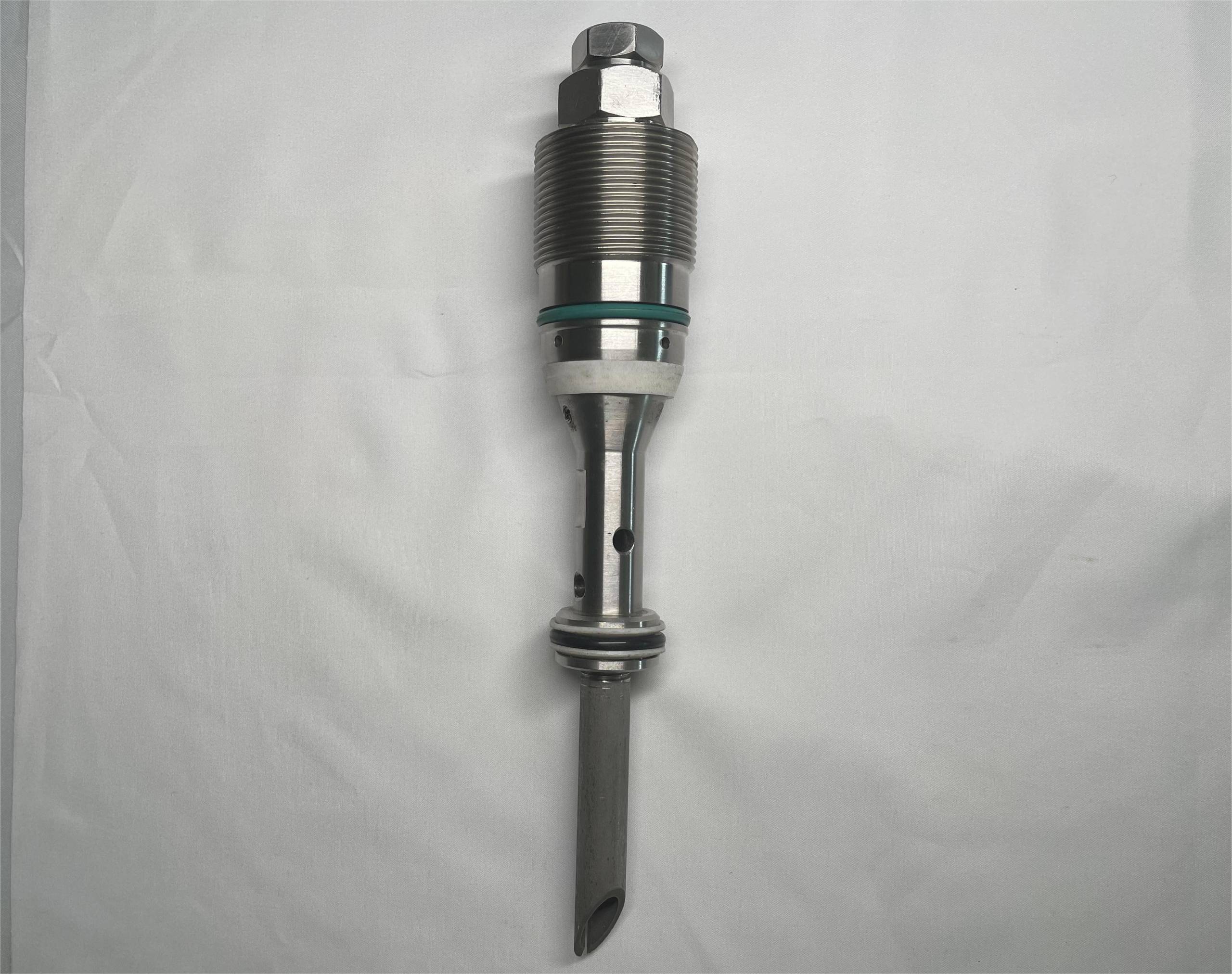

Retractable Injection Quills
Allows insertion and removal under full pipeline pressure, enabling maintenance and cleaning without process interruption. Includes locking mechanisms and safety interlocks for operator protection.

Check Valve Integrated Models
Built-in check valves prevent backflow of process fluids into chemical delivery lines, protecting pumping equipment and ensuring one-directional flow.

Material Selection and Construction Standards for Injection Quills

Quality injection quills must withstand harsh operating environments. Our manufacturing standards include:

Material Options:

• 316/316L Stainless Steel – Superior corrosion resistance for sour service applications
• Duplex Stainless Steel – Enhanced strength for high-pressure environments
• Specialty Alloys – Custom materials available for extreme temperature or chemical compatibility requirements

Design Features:

• Check valve integration to prevent process fluid backflow
• Retractable designs for online maintenance capability
• Multiple connection options (NPT, BSP, ANSI flanges)
• Customizable insertion lengths to match pipe diameters

Applications in Oil & Gas Operations

Procurement Considerations: What Buyers Need to Know

1. Pressure Ratings
Ensure the selected quill meets or exceeds your system’s maximum operating pressure (MAOP). Our products undergo rigorous pressure testing to API and ASME standards.

2. Chemical Compatibility
Verify material compatibility with specific treatment chemicals. Our technical team provides comprehensive chemical resistance charts to guide selection.

3. Installation Requirements
Consider access for installation and maintenance. Retractable quill designs allow service without system shutdown, reducing operational downtime.

4. Regulatory Compliance
Confirm products meet industry standards including API, ASME, and NACE specifications for sour service where applicable.

Quality Assurance and Testing

Every injection quill undergoes comprehensive quality control processes:

• Hydrostatic pressure testing at 1.5x rated pressure
• Material certification and traceability
• Dimensional verification against engineering drawings
• Surface finish inspection for critical sealing areas
