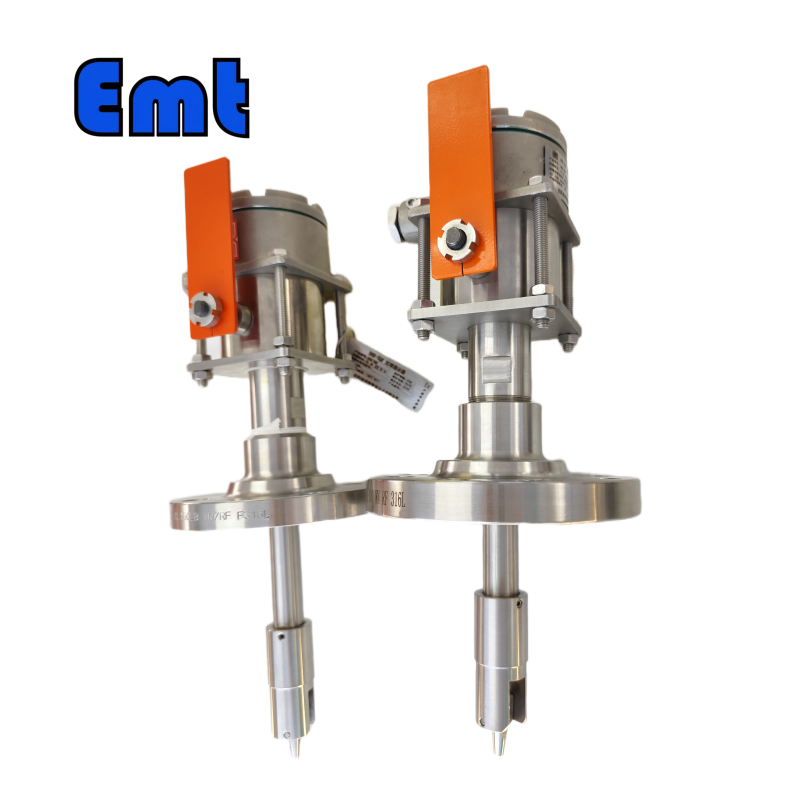

The EMT Flange Pig Detector provides critical real-time information for pipeline operations. It reliably confirms the passage of pipeline pigs, ensuring efficient maintenance and inspection cycles. This essential device helps operators monitor pigging progress and prevent costly delays. Our detectors offer robust performance in demanding oil and gas environments. We design them for accuracy and long-term reliability.

1. Key Technical Data

We engineer our Flange Pig Detector for optimal performance and durability. Below are its primary specifications:

• Connection Type: ANSI B16.5 Flange, Class 150#, 300#, 600#.
• Nominal Sizes: 2-inch to 48-inch pipelines.
• Operating Pressure: Up to 1480 psi (102 bar).
• Operating Temperature: -40°F to +250°F (-40°C to +121°C).
• Body Material: Carbon Steel (ASTM A105, A350 LF2), Stainless Steel (ASTM A182 F304, F316).
• Seal Material: Viton, NBR, PTFE, or custom options.

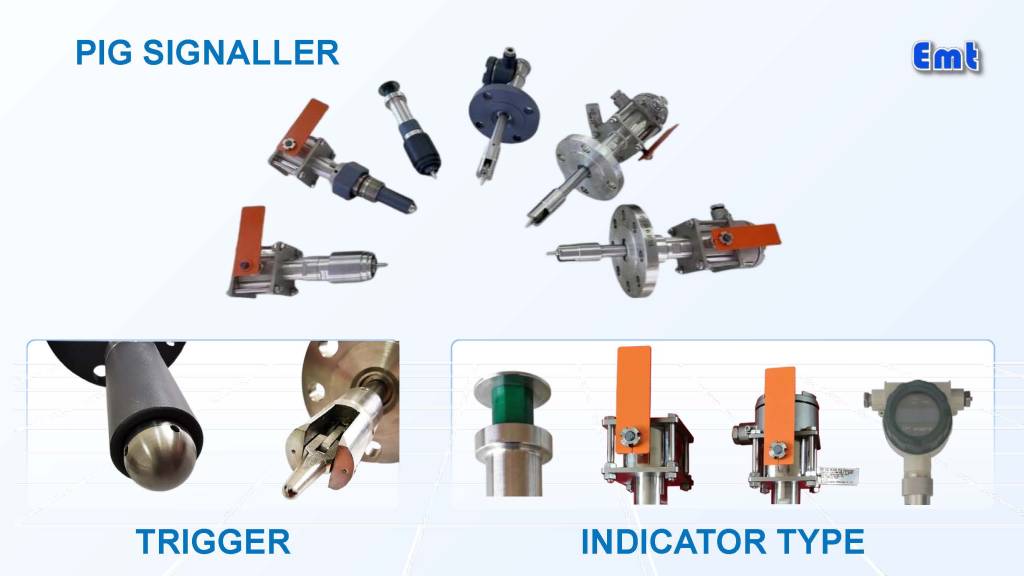

• Detection Method: Mechanical, Bi-directional trigger.
• Visual Indication: High-visibility flag or plunger.
• Electronic Output: Dry contact switch (SPDT), Optional 4-20mA output.
• Certifications: ATEX, IECEx, NEMA 4X, IP66/67 (for electronic models).
• Pig Compatibility: All standard pig types (cup, disc, foam, intelligent).
• Mounting: Directly welds or bolts onto the pipeline.

2. Reliable Performance Features

EMT’s Flange Pig Detector delivers exceptional reliability in diverse pipeline applications. We focus on engineering solutions that enhance operational efficiency. This detector provides clear, immediate feedback on pig movement.

We construct the detector with high-grade materials. This ensures superior resistance to corrosion and wear. It withstands extreme temperatures and pressures common in oil and gas pipelines. Operators trust its robust design for continuous service. Its mechanical trigger system offers inherent simplicity and reliability. It activates precisely upon pig passage.

Our design supports both bi-directional pigging operations. This versatility makes it suitable for various pipeline tasks. Installation is straightforward with the standardized flange connection. This reduces downtime and simplifies maintenance procedures. The detector requires minimal ongoing attention. Its sealed construction protects internal components from external elements. This extends its operational lifespan significantly.

The visual indicator provides local confirmation of pig passage. This allows field personnel to verify operations instantly. Electronic output options integrate seamlessly into control systems. They transmit real-time data to remote monitoring stations. This ensures comprehensive oversight of pigging activities. Our detectors maintain high accuracy across different flow rates. They perform consistently even with varying product media.

3. Why Choose EMT Pig Detectors?

Choosing an EMT Pig Detector means investing in pipeline integrity and operational excellence. We engineer our products to meet the rigorous demands of the energy sector. Our commitment to quality ensures every detector performs flawlessly. It provides accurate data for crucial pigging operations.

Our detectors minimize human error through automated detection. This enhances safety for field personnel. Precise pig tracking helps prevent pipeline blockages and damage. It contributes directly to improved flow assurance. Operators can schedule maintenance tasks with greater confidence. This reduces unscheduled downtime and its associated costs.

EMT provides robust, long-lasting solutions. Our Flange Pig Detector is built for endurance. It offers a low total cost of ownership over its lifespan. We understand the critical nature of pipeline infrastructure. Therefore, we design products that offer peace of mind. Our expertise in pipeline accessories ensures compatibility and performance. We stand behind our engineering and manufacturing quality.

4. Seamless Integration & Support

The EMT Flange Pig Detector integrates effortlessly into existing pipeline systems. Its standard flange connections simplify installation. We offer various configurations to match specific project requirements. Our engineering team can provide guidance on optimal placement. This ensures maximum effectiveness for your pigging programs.

We offer comprehensive technical support. Our experts assist with selection, installation, and operation. We ensure you get the most from your investment. Customization options are available for unique applications. We adapt our solutions to fit challenging environments. Partner with EMT for reliable pipeline solutions. We are dedicated to supporting your operational success. Contact us today for detailed product information.
