Description

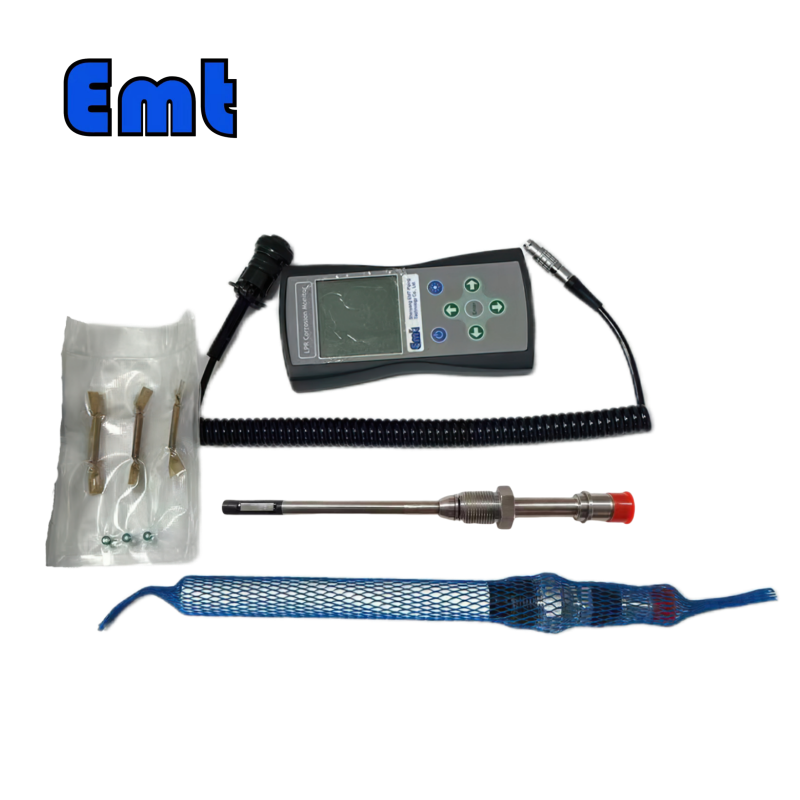

The EMT ER Probe plays a pivotal role in industries where the durability and integrity of metal structures are non-negotiable. These industries typically operate in environments prone to high levels of corrosion and erosion, which can compromise the safety, efficiency, and longevity of critical infrastructure. The ER Probe is designed to address these challenges by providing a reliable, accurate means of monitoring the condition of metal components, thus ensuring operational integrity and safety.

1. Technical Specifications of the EMT ER Probe

Below is a detailed breakdown of its technical specifications:

⑴ Metal Material

1. • 316L Stainless Steel. This is a low-carbon version of 316 stainless steel and is widely used in corrosive environments due to its greater resistance to pitting and crevice corrosion in chloride environments. The lower carbon content helps minimize carbide precipitation during welding, maintaining corrosion resistance in as-welded structures.
   • F51 Duplex Stainless Steel. Known for its high strength and excellent corrosion resistance, duplex stainless steel combines the qualities of austenitic and ferritic stainless steel. It is particularly effective against stress corrosion cracking, making it ideal for use in the oil and gas and chemical processing industries where such forms of corrosion are prevalent.

⑵ Sealing Material

1. • Teflon. Teflon seals are known for their chemical inertness, allowing them to withstand a wide range of temperatures and aggressive chemicals without degradation. This makes them suitable for sealing applications in chemical processing environments.
   • Fluoro Rubber. This material, also known as Viton, is highly valued for its high temperature and chemical resistance, making it well-suited for applications involving high temperatures and corrosive fluids.

⑶ Operational Conditions

1. • Temperature Range. The ER Probe can operate effectively within a temperature range of -20 to 200°C. This wide range allows it to function in environments from freezing conditions to high-temperature processes.
   • Pressure Range. It is capable of withstanding pressures from 0 to 26 MPa, making it versatile for use in both low and high-pressure applications across various industries.

⑷ Installation Features

• • Flange Size: The ANSI 2″ RF flange is a common size that provides a reliable and standard seal, ensuring that the probe can be integrated into many existing systems without the need for additional adapters or modifications.
  • Material Options for Flanges:
    • Carbon Steel (CS). Offers good strength and is cost-effective for many applications where corrosion is not a severe concern.
    • 316L Stainless Steel. Provides excellent corrosion resistance in harsh environments.
    • Duplex Stainless Steel. Offers both strength and corrosion resistance, ideal for severe service conditions found in many industrial processes.

2. Key Industries Benefiting from the ER Probe:

1. Oil and Gas
   • In the oil and gas sector, pipelines, storage tanks, and processing equipment are constantly exposed to corrosive substances and extreme pressure conditions. The ER Probe helps in predicting the rate of corrosion and erosion, allowing for timely maintenance and preventing catastrophic failures that could lead to environmental disasters or human casualties.
2. Water Treatment
   • Facilities in the water treatment industry deal with various chemicals and processing environments that can erode and corrode treatment tanks and piping systems. The ER Probe allows these facilities to monitor corrosion rates, also helping to prevent leaks and maintain the integrity of the water treatment systems which are crucial for public health and environmental protection.
3. Chemical Processing
   • Chemical plants utilize a wide range of reactive substances and at varying temperatures and pressures. Which can accelerate the degradation of metal structures. The implementation of ER Probes in this sector enables proactive maintenance scheduling, reducing downtime and extending the service life of equipment. This not only boosts productivity but also enhances workplace safety by reducing the risk of unexpected equipment failures.

3. Features and Benefits of the EMT ER Probe

1. Operational Principle

   • Electrical Resistance Measurement. The ER Probe functions by measuring the change in electrical resistance of a metal as it corrodes or erodes. This method is highly effective for detecting even minor changes in metal thickness, offering an accurate indication of the rate and extent of corrosion. So this direct measurement allows for precise corrosion rate calculations, essential for critical assessments and planning.

2. Adaptability

   • Versatile Application. The ER Probe is designed to function in a variety of environments. It includes underwater, underground, and exposed to extreme temperatures and pressures. So its robust construction allows it to be used in different industrial sectors. Such as oil and gas, chemicals, and water treatment, among others.

3. Ease of Installation

   • Non-Intrusive Design. The probe is engineered to be installed without needing major modifications to existing systems. This non-intrusive feature minimizes downtime and disruption during installation, making it an ideal choice for ongoing operations seeking to enhance their monitoring systems.

4. Reliability

   • Durable Materials. Constructed from high-quality stainless steel and other corrosion-resistant materials, the ER Probe is built to withstand severe industrial environments. Then this durability ensures long-term reliability and reduces the frequency and cost of replacements.
