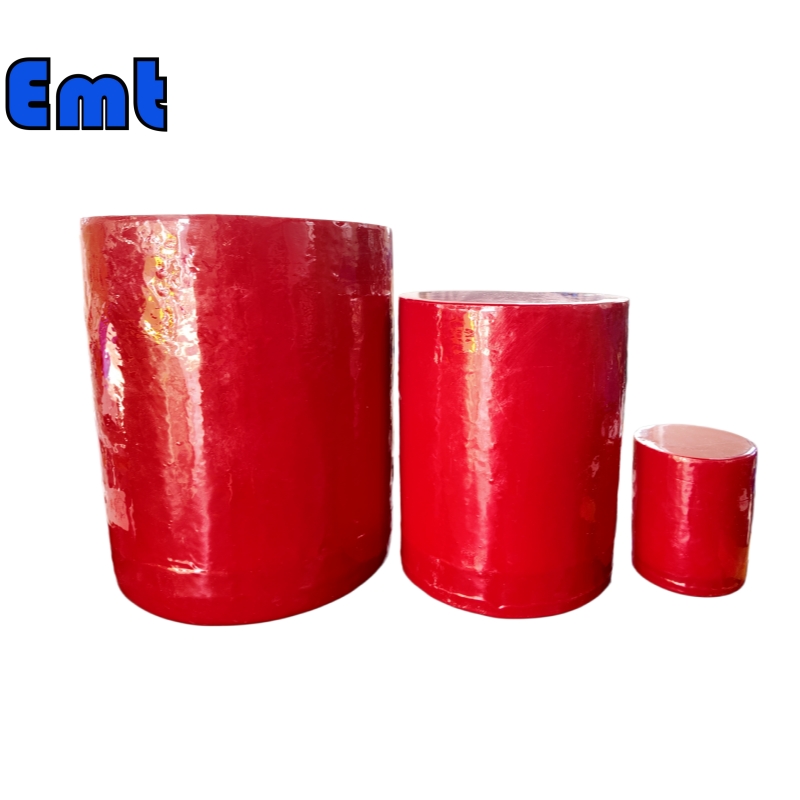

What Is a Double Flat Foam Pig?
A double flat foam pig is a specialized pipeline cleaning tool designed for efficient, reliable maintenance across oil, gas, water, and industrial pipeline systems. Unlike traditional bullet-shaped foam pigs, this tool features flat, parallel ends on both sides—hence the name “double flat.”
Made from high-quality polyurethane foam, these pigs come in a range of densities to match every pipeline’s unique needs, from low-density for gentle cleaning to high-density for heavy-duty scrubbing. They also feature a full-coat durable coating that boosts wear resistance, ensuring long service life even in harsh pipeline environments.
Key Features of Double Flat Foam Pig
1. Unique Double Flat End Design
The double flat structure is the standout feature of this pig. Unlike bullet-shaped pigs that focus pressure on a single leading edge, flat ends create uniform, full-diameter contact with the pipeline wall from the moment the pig enters the line. This design eliminates uneven cleaning, ensures consistent debris removal, and prevents the pig from tipping or jamming in straight pipelines. It also makes the pig reversible in many applications, adding flexibility to maintenance workflows.
2. Full-Coat Durable Coating
Every double flat foam pig comes with a full, uniform coating of wear-resistant material (typically polyurethane or a similar industrial polymer). This full-wrap coating covers the entire surface of the foam core, not just select areas, which delivers two major benefits:
- Enhanced Abrasion Resistance: The coating shields the foam core from scratches, tears, and wear caused by pipeline debris, scale, and corrosion, extending the pig’s operational life significantly.
- Consistent Sealing: A full, smooth coating creates a reliable, leak-proof seal against the pipeline wall, maximizing the pig’s ability to push debris, liquid, and contaminants out of the line.
3. Multiple Density Options for Every Application
Double flat foam pigs are available in low, medium, and high-density foam cores, so you can choose the right pig for your specific pipeline task:
- Low-Density Foam Pigs: Soft, flexible, and lightweight, these pigs are perfect for gentle cleaning, liquid displacement, and drying operations in new or sensitive pipelines. They conform easily to minor pipeline irregularities without damaging internal coatings.
- Medium-Density Foam Pigs: The most versatile option, medium-density pigs balance flexibility and rigidity. They work well for routine maintenance cleaning, wax removal, and general debris sweeping in most oil, gas, and water pipelines.
- High-Density Foam Pigs: Rigid, tough, and highly durable, these pigs handle heavy-duty cleaning tasks, such as removing tough scale, paraffin buildup, and solid debris from high-pressure or heavily contaminated pipelines.
4. Superior Wear Resistance
Thanks to the combination of high-quality foam and a full, durable coating, double flat foam pigs offer exceptional wear resistance. They withstand repeated use in abrasive pipeline environments, resist chemical damage from common pipeline fluids, and maintain their shape and sealing performance over long runs. This durability reduces maintenance costs and downtime, as you can rely on the pig to perform consistently without frequent replacement.
5. Versatile Compatibility
Double flat foam pigs work with a wide range of pipeline sizes, materials, and fluids. They fit seamlessly into steel, PVC, and composite pipelines, and they are compatible with crude oil, natural gas, water, chemicals, and other industrial fluids. Whether you’re cleaning a small-diameter water line or a large-diameter oil transmission pipeline, you can find a double flat foam pig sized and spec’d for your project.
Common Applications of Double Flat Foam Pigs
Double flat foam pigs excel in a variety of pipeline maintenance tasks, including:
- Routine Cleaning: Sweeping debris, dirt, and loose scale from pipelines to maintain flow efficiency.
- Liquid Displacement: Removing water, oil, or other fluids from pipelines during maintenance, commissioning, or decommissioning.
- Pipeline Drying: Drying new pipelines after hydrotesting to prevent corrosion before operation.
- Wax and Paraffin Removal: Clearing buildup from oil pipelines to restore flow capacity.
- Pre-Inspection Cleaning: Preparing pipelines for inline inspection (ILI) tools like smart pigs, ensuring clear, unobstructed lines for accurate data collection.
Why Choose Double Flat Foam Pigs Over Bullet-Shaped Pigs?
While bullet-shaped pigs work well for certain tasks, double flat foam pigs offer clear advantages for many applications. Their flat ends deliver uniform cleaning across the entire pipeline wall, eliminating the “dead zones” that bullet pigs can leave behind. They also provide a more consistent seal, which improves liquid displacement and debris removal efficiency. Additionally, their reversible design and full-coat coating make them more durable and flexible for routine maintenance, reducing the need for specialized pig tools for different tasks.
