Are you struggling to select the right corrosion coupon for your specific pipeline conditions? Moreover, are you confident that your current monitoring system delivers accurate, actionable data? In the oil and gas industry, choosing the appropriate corrosion monitoring tool can mean the difference between preventing costly failures and facing unexpected downtime.

Consequently, corrosion coupons have become indispensable for providing critical data about material degradation rates. Specifically, these tools help engineers predict equipment lifespan and optimize maintenance schedules with greater precision.

Furthermore, whether you’re managing low-pressure gathering lines or high-pressure transmission pipelines, understanding the various types of corrosion coupons available is essential for making informed procurement decisions. Therefore, EMT has developed a comprehensive range of solutions tailored to diverse operational requirements.

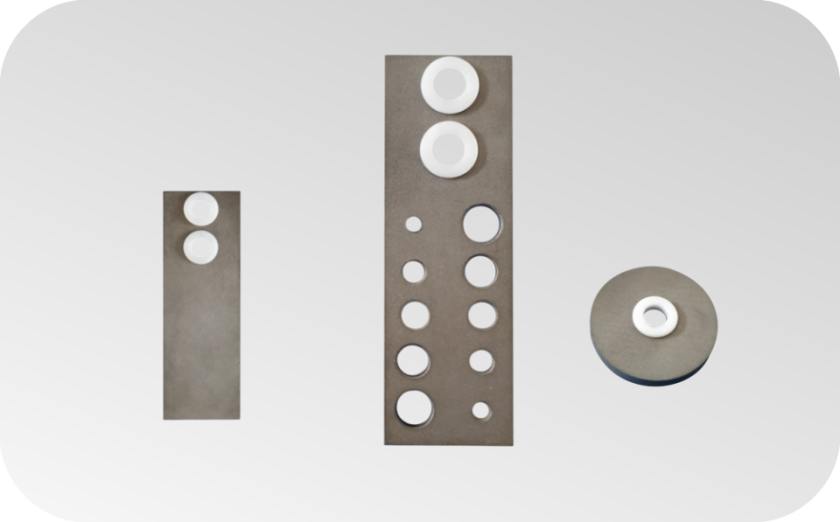

Types of Corrosion Coupons: Round vs. Strip Designs

When selecting a corrosion coupon, the first decision involves choosing between geometric designs. In addition to considering material composition, you must evaluate the physical format. Subsequently, the two primary categories emerge: round coupons and strip coupons, each serving specific monitoring purposes.

Round Corrosion Coupons

Round corrosion coupons are among the most traditional designs used in the industry. Specifically, their circular shape provides uniform exposure to corrosive media from all angles. As a result, they are ideal for:

• General corrosion rate monitoring
• Applications requiring standardized mass loss calculations
• Systems where directional flow effects need to be minimized

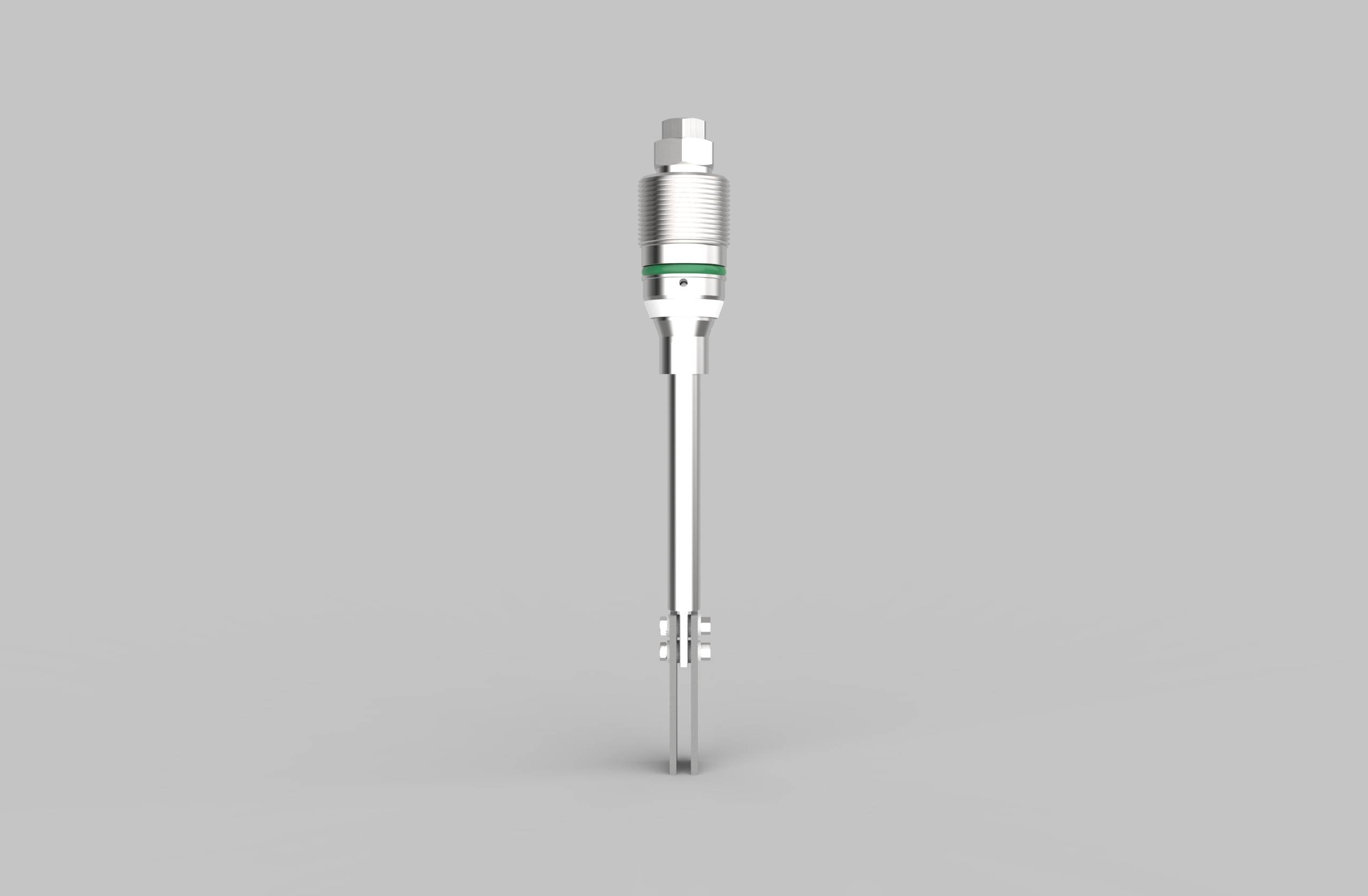

Moreover, EMT manufactures precision-engineered round coupons that integrate seamlessly with standard access fittings. Consequently, these coupons are typically mounted on coupon holders and inserted into access fittings, allowing for easy retrieval and analysis during scheduled maintenance intervals.

Strip Corrosion Coupons

On the other hand, strip corrosion coupons, also known as rectangular coupons, offer distinct advantages in specific applications. Furthermore, their elongated shape provides:

• Larger surface area for more accurate weight loss measurements
• Better representation of pipeline wall conditions

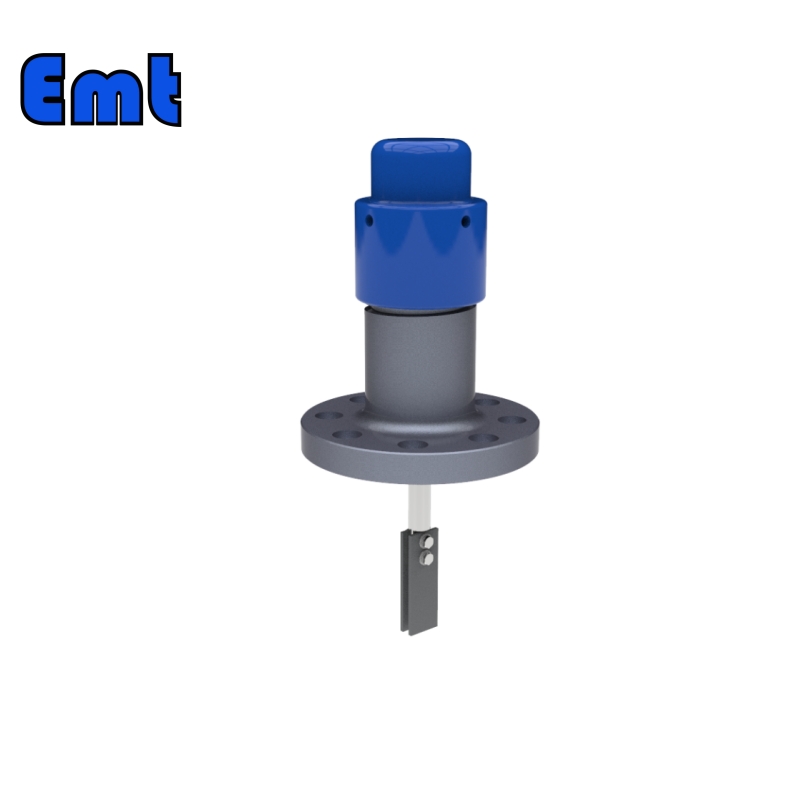

• Compatibility with various holder systems including EMT’s popular SR-6″ fixed coupon holders

In fact, EMT’s standard strip coupon dimensions follow specifications like 3″ x 1/2″ x 1/8″, making them compatible with most industry-standard sampling and injection systems. Therefore, procurement teams can easily integrate these into existing infrastructure.

Strip vs. Scale Coupons: Understanding the Design Differences

Within the strip category, procurement professionals must distinguish between two critical variations: standard strip coupons and scale coupons. Moreover, this distinction significantly impacts monitoring capabilities and data interpretation.

Standard Strip Coupons (Non-Perforated)

Standard strip corrosion coupons feature a solid, non-perforated design. Consequently, these are typically used for:

• General corrosion monitoring: Providing baseline corrosion rate data
• Erosion studies: Measuring material loss from mechanical wear
• Chemical treatment evaluation: Assessing inhibitor effectiveness

Furthermore, the solid construction ensures that corrosion occurs uniformly across the surface. As a result, EMT’s strip coupons deliver reliable mils-per-year (MPY) calculations that directly correlate to your pipeline material’s life expectancy.

Scale Coupons (Multi-Hole Design)

However, scale corrosion coupons, distinguished by their perforated or multi-hole configuration, serve specialized monitoring functions. Specifically, these include:

• Localized corrosion detection: Multiple holes create crevices where pitting and under-deposit corrosion can initiate
• Scale deposition assessment: The holes trap mineral deposits and scale formations, allowing engineers to study accumulation rates and composition
• Microbiologically influenced corrosion (MIC) studies: The sheltered areas promote bacterial colonization, helping identify MIC risks

Moreover, EMT’s scale corrosion coupons feature several precisely machined holes along the strip length. Consequently, these artificial crevices simulate real-world conditions where corrosion accelerates due to deposit accumulation.

Procurement Tip: When ordering scale coupons, specify the number and diameter of holes required based on your specific monitoring objectives. For instance, EMT offers standard configurations typically including 3-5 holes per strip. Furthermore, custom hole patterns are available upon request.

Corrosion Coupons for Different Pressure Applications

Pipeline operating pressure fundamentally influences corrosion coupon selection and system design. Therefore, understanding the distinction between low-pressure and high-pressure applications ensures both safety and data accuracy. Moreover, EMT provides specialized solutions for each pressure category.

Low-Pressure Corrosion Coupons

Low-pressure corrosion coupons (typically for systems operating below 150 psi) feature simpler designs and installation methods. Specifically, these include:

• Standard access fittings: Compatible with basic threaded or flanged connections
• Manual retrieval systems: Often using retrievable coupon holders that don’t require specialized tools
• Cost-effective materials: Standard carbon steel or alloy coupons without premium pressure-rated components

Consequently, EMT’s low-pressure solutions are commonly found in water injection lines, low-pressure gathering systems, and tank farm applications where pressure containment requirements are less stringent. Furthermore, these systems offer excellent value for operations with limited monitoring budgets.

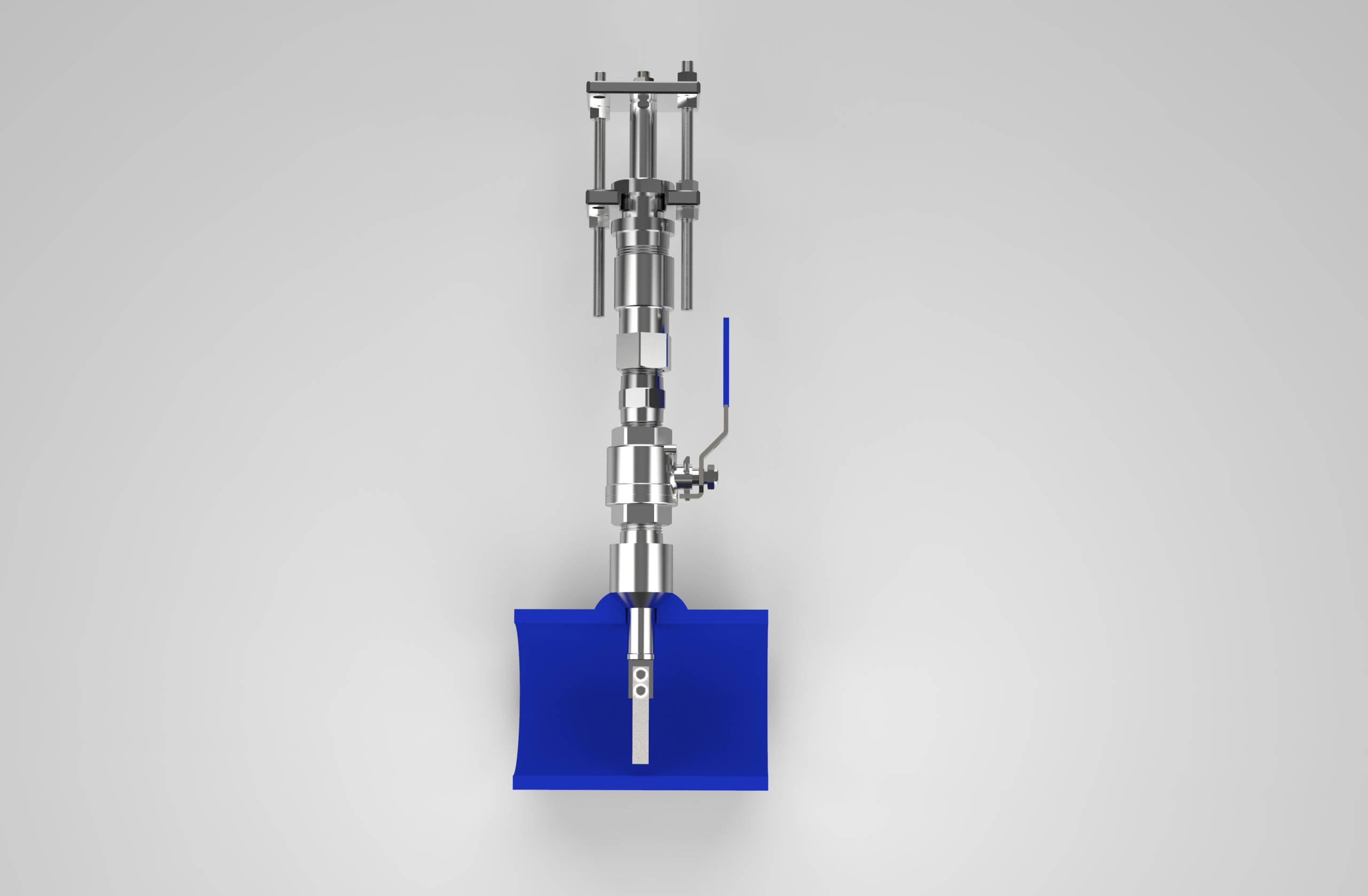

High-Pressure Corrosion Coupons

In contrast, high-pressure corrosion coupons (for systems exceeding 150 psi, often reaching 1,500+ psi in transmission pipelines) require robust engineering. Therefore, EMT’s high-pressure solutions incorporate:

• Heavy-duty access fittings: Pressure-rated to match pipeline operating conditions
• Specialized retrieval tools: Hydraulic or mechanical systems that safely extract coupons without depressurizing the line

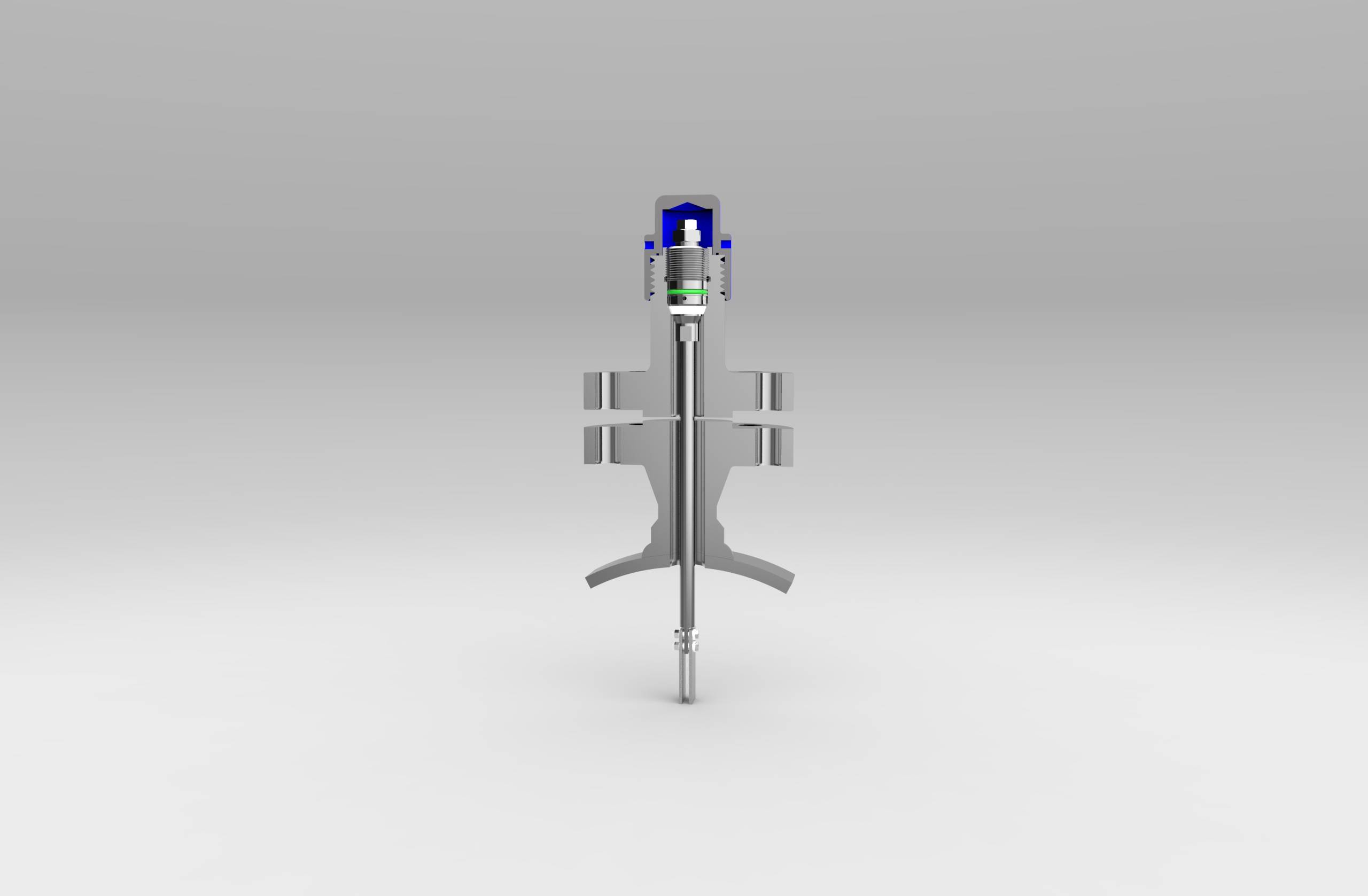

• Reinforced coupon holders: Designed to withstand pressure differentials during insertion and removal

Moreover, EMT’s high-pressure corrosion coupons comply with strict ASME and API standards. Subsequently, the coupon holders feature dual-seal designs to prevent leakage during the retrieval process, protecting both personnel and equipment. Ultimately, this ensures safe operation even in the most demanding environments.

Critical Consideration: Never install a low-pressure coupon system in a high-pressure environment. Otherwise, the pressure rating mismatch creates serious safety hazards and compromises data integrity. Therefore, always verify pressure ratings before procurement.

Making the Right Selection for Your Operation

Ultimately, selecting the optimal corrosion coupon requires evaluating multiple factors. Moreover, EMT’s technical team can guide you through this decision-making process. Specifically, consider the following:

1. Pipeline pressure rating: Match your coupon system to operating conditions
2. Corrosion monitoring objectives: Choose solid strips for general monitoring or scale coupons for localized corrosion studies
3. Retrieval frequency: Consider accessibility and maintenance scheduling
4. Material compatibility: Ensure coupons match pipeline metallurgy for accurate correlation

Furthermore, by partnering with EMT, you gain access to decades of corrosion monitoring expertise. Consequently, you can match the corrosion coupon type to your specific application—whether round or strip, perforated or solid, low-pressure or high-pressure rated—with complete confidence.

Conclusion

In summary, understanding the nuances of corrosion coupon selection empowers procurement professionals to specify the right monitoring tools for their infrastructure. Specifically, from EMT’s solid strip coupons for general corrosion assessment to multi-hole scale coupons for deposit studies, and from low-pressure systems to high-pressure-rated installations, each configuration serves a distinct purpose in pipeline integrity management.

Furthermore, investing in the correct corrosion coupon type not only ensures accurate corrosion rate data but also contributes to safer operations, extended equipment life, and optimized chemical treatment programs. Therefore, contact EMT today to discuss your specific requirements and discover how our comprehensive range of corrosion monitoring solutions can enhance your asset protection strategy.
