Description

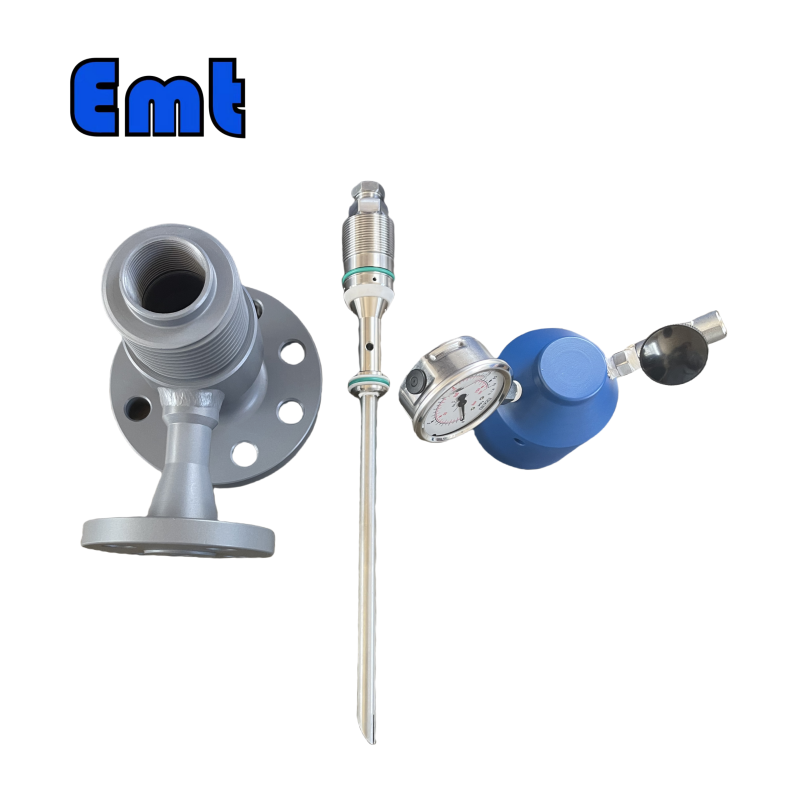

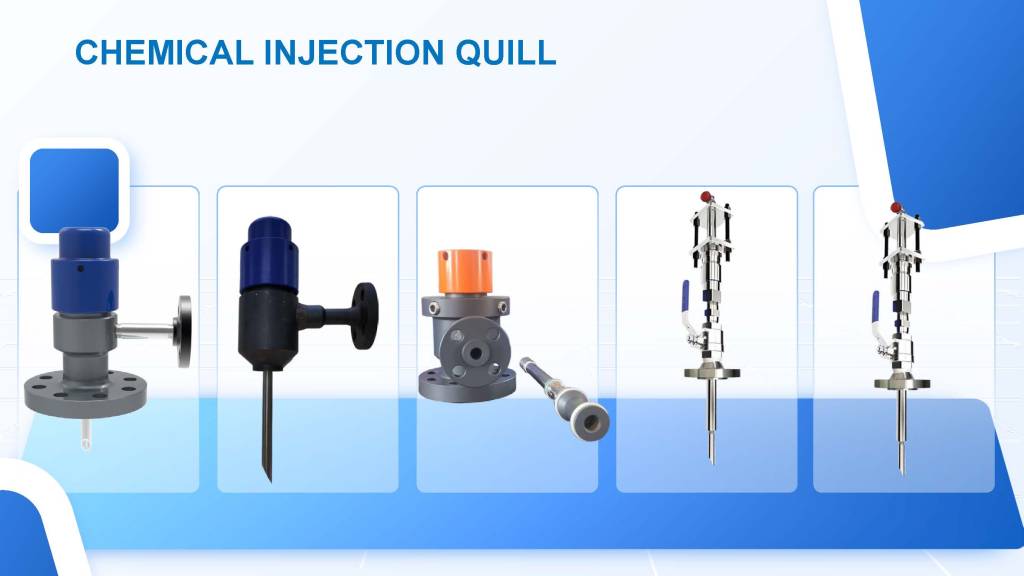

Chemical Injection Quills are vital for maintaining pipeline integrity. Our Flange Connection Injection Quill delivers precise chemical dosing. It ensures optimal performance in demanding oil and gas environments. This specialized device injects various chemicals into pipelines. It prevents corrosion, scale, and hydrate formation. Operators rely on our quills for consistent flow assurance. They protect valuable assets from damage. Our design provides superior reliability and safety. It meets the rigorous demands of upstream and midstream operations.

Technical Data

Our Flange Connection Injection Quill offers robust specifications. These ensure reliable operation in harsh conditions. We design our quills for long service life.

• Flange Sizes: 1″ to 6″ nominal pipe size (NPS). This accommodates common pipeline dimensions.
• Pressure Ratings: ASME Class 150 to Class 2500. This handles diverse system pressures safely.
• Material Options: 316L Stainless Steel, Duplex Stainless Steel (UNS S31803, UNS S32750). We also offer Hastelloy C276, Monel 400, and Inconel 625. These materials resist aggressive media effectively.
• Insertion Lengths: Customizable to specific pipeline diameters. This ensures optimal chemical dispersion within the flow.
• Seal Type: Metal-to-metal or soft seal options are available. This provides reliable, leak-free operation.
• Connection Standards: ASME B16.5 and API 6A compliant. We ensure broad industry compatibility and safety.
• Operating Temperature: From -46°C to +200°C (-50°F to +392°F). This covers a wide range of process temperatures.
• NACE Compliance: Meets NACE MR0175 / ISO 15156 standards. This addresses sulfide stress cracking in sour service.

Key Advantages

Our Flange Connection Injection Quills provide numerous operational benefits. They enhance safety and reduce maintenance costs.

Superior Material Selection:
We use high-grade materials. This ensures exceptional corrosion and erosion resistance. Materials like Duplex and Hastelloy withstand harsh chemicals. They extend the quill’s service life significantly. This reduces the need for frequent replacements.

Secure Flange Connection:
The robust flange connection offers maximum security. It prevents leaks at high pressures. This design reduces the risk of unplanned shutdowns. Operators can trust its steadfast performance. It provides a stable and reliable interface.

Optimized Chemical Dispersion:

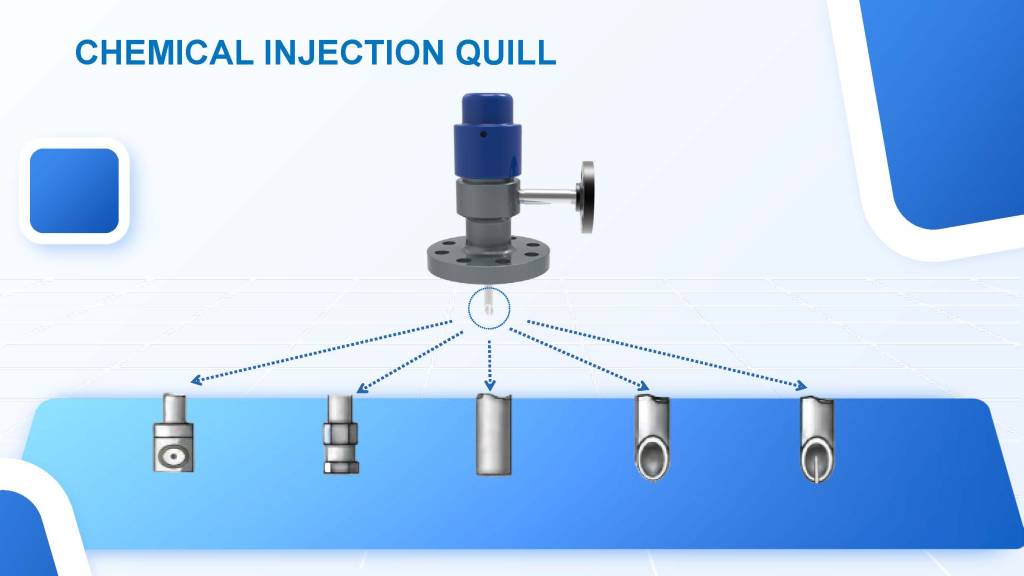

We engineer the quill tip for effective chemical distribution. It ensures homogeneous mixing within the pipeline flow. This maximizes the efficacy of injected chemicals. It protects the entire pipeline system from damage. This even distribution optimizes treatment.

Enhanced Safety Features:
Our design includes features for safe operation. A robust locking mechanism prevents accidental removal. This protects personnel and the environment. Operators can perform maintenance with confidence. We prioritize operational safety.

Ease of Installation and Maintenance:
The flange design allows for straightforward installation. Technicians can easily access components for inspection. This minimizes downtime during routine maintenance. It simplifies operational procedures, saving time and resources.

Compliance and Reliability:
Our quills meet stringent industry standards. They conform to ASME, API, and NACE specifications. This guarantees consistent quality and performance. You receive a dependable product. We build our products for lasting reliability.

Chemical Injection Quills Diverse Applications

Flange Connection Chemical Injection Quills serve critical roles. They support various processes in the oil and gas industry.

Corrosion Inhibition:
Operators inject corrosion inhibitors into pipelines. This protects metal surfaces from corrosive fluids. Our quills ensure even distribution of these vital chemicals. They extend the lifespan of costly infrastructure. This prevents premature equipment failure.

Scale Prevention:
Scale formation can restrict flow and damage equipment. Quills precisely inject scale inhibitors. This prevents mineral deposits from accumulating. It maintains optimal flow rates and system efficiency. This protects pumps and valves from damage.

Wax and Hydrate Control:
Low temperatures can cause wax deposition or hydrate formation. Chemical injection prevents these blockages. Our quills deliver wax and hydrate inhibitors effectively. They ensure continuous product flow. This avoids costly production delays.

Biocide Dosing:
Microbial growth can lead to corrosion and fouling. Biocides control bacterial activity within pipelines. Our injection quills facilitate precise biocide delivery. They maintain system cleanliness and integrity. This reduces microbiological influenced corrosion.

Chemical Treatment in Production:
These quills are essential in upstream production facilities. They inject various treatment chemicals. This includes demulsifiers and defoamers. They optimize separation processes and product quality. This enhances overall operational efficiency.

Midstream Pipeline Protection:
Midstream operators use quills for long-distance pipelines. They protect against internal degradation. Consistent chemical dosing safeguards transported hydrocarbons. This reduces operational risks and costs. It secures the entire transport network.

Choose EMT Chemical Injection Quills

EMT Flange Connection Injection Quills exemplify our commitment. We deliver robust, reliable solutions. Our products optimize your operations. They ensure long-term asset integrity.

We understand the challenges of the oil and gas sector. Our engineers design products for extreme conditions. We adhere strictly to international standards. This includes API, ASME, and NACE requirements. You receive products built for performance. They offer peace of mind.

Our team offers comprehensive technical support. We assist with selection and customization. We ensure you find the right solution. Trust EMT for your critical chemical injection needs. Partner with us for dependable pipeline components. We build lasting relationships through quality.
