Description

1. What Is Retractable Chemical Injection Quill?

As a Chemical Injection Quill manufacturer, EMT produces a retractable injection quill: a pipeline fitting that introduces treatment chemicals into the flowing medium and allows the quill to be withdrawn from service. The assembly carries the chemical through a sealed insertion path into the pipe bore, so corrosion inhibitors and other treatment chemicals reach the process stream directly. The retractable design separates the injection function from the isolation function, letting maintenance personnel retract the quill without depressurizing the whole line. So it is a standard element in corrosion-control programs alongside corrosion coupons and chemical samplers.

2. What Are the Key Parameters?

Because every pipeline service differs, EMT treats the retractable chemical injection quill as a configured assembly rather than a catalog item. The wetted body is forged steel, ASME-rated, and the sealing arrangement is self-energizing so that process pressure assists the seal. The insertion tube is matched to the chemical being dosed, since corrosion inhibitors, oxygen scavengers, and similar media demand different metallurgy and elastomer choices. Connection type, insertion length, and packing style follow the client’s piping class and injection point. Materials are selected for compatibility with the injected chemical and the produced fluid, following NACE and API conventions where sour service applies.

Parameter	Value	Note
Body material	Forged steel, ASME-rated	Matched to piping class
Seal type	Self-energizing seal	Process pressure assists sealing
Insertion tube	Alloy matched to injected chemical	Selected per medium
Connection	Flanged or threaded	Per client piping specification
Retraction	Manual retractable assembly	Quill withdraws from service
Quality program	ASME U Stamp	Certified fabrication
Service	Corrosion inhibitor and treatment chemical dosing	Sour service per NACE where required

How Does It Work?

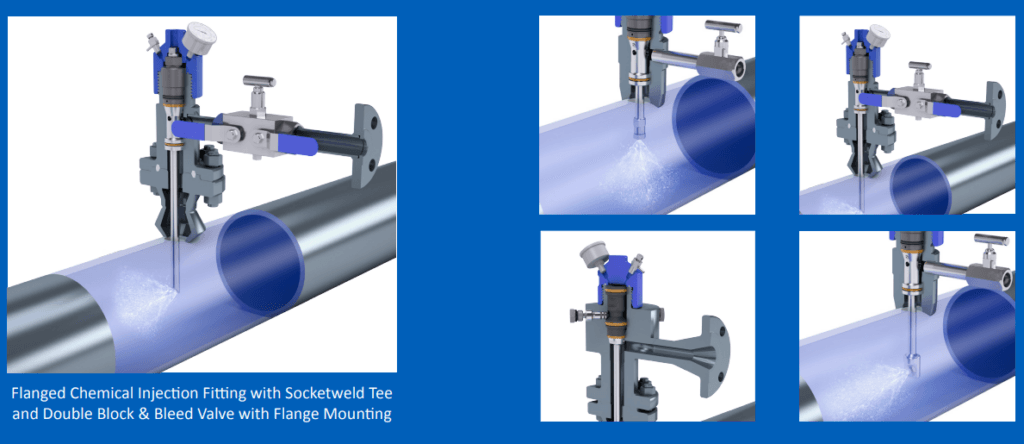

The quill inserts through a sealing gland into the pipe bore, placing the injection tip where the chemical mixes with the flowing medium. Chemical enters through the inlet connection, travels along the insertion tube, and discharges at the tip. The self-energizing seal holds line pressure around the insertion tube; as pressure rises, it tightens the seal rather than working against it. When maintenance is required, the operator retracts the quill through the same sealed path, so the injection point can be serviced without draining the line.

Where Should You Use It?

Typical use scenarios follow corrosion-control practice. Operators install the quill on pipelines and process lines where corrosion inhibitors must be dosed continuously. It fits field injection control schemes, where dosing is adjusted against real-time corrosion data, and it pairs with corrosion coupons and chemical samplers in a complete corrosion-monitoring program. It also suits laboratory and pilot evaluation loops, where a known chemical quantity must be introduced into a test stream. Because the quill is retractable, it is often chosen for injection points that need periodic inspection or replacement, and for services where the injected chemical would otherwise be difficult to introduce safely.

Why Choose This Design?

• Retractable assembly lets you service the injection point without shutting down the line.
• Self-energizing seal uses process pressure to tighten sealing, not loosen it.
• Forged steel, ASME-rated body matches your piping class and pressure requirements.
• Insertion tube metallurgy is matched to the injected chemical for compatibility.
• Fabrication follows an ASME U Stamp quality program for documented traceability.

Who Is EMT and Why Trust Us?

EMT is a pipeline equipment manufacturer serving the oil and gas industry, with a product range that includes corrosion coupons, chemical injectors, chemical samplers, and corrosion-monitoring accessories. The company holds the ASME U Stamp, so pressure-retaining fabrication follows a certified quality program with documented material and weld control. That matters for injection quills, because the assembly is a pressure boundary item on a live pipeline.

EMT’s corrosion product group is designed to work as a system. A customer monitoring corrosion rate with coupons can add a chemical injection quill to dose inhibitors, and a chemical sampler to verify the treated medium, all from one supplier with consistent materials and documentation. The company also exhibits at industry events, where its corrosion-monitoring equipment is presented to pipeline and refinery operators. For specifications, material selection, or a quotation on a retractable chemical injection quill, contact EMT through emt-pipe.com with your line size, piping class, injected chemical, and injection point details.

FAQ

What is a retractable chemical injection quill used for?
It injects corrosion inhibitors and treatment chemicals into a pipeline, and it can be withdrawn from service for maintenance without shutting down the line.

Can the quill be removed while the line is under pressure?
Yes. The retractable assembly lets the operator withdraw the quill through the sealed insertion path, so the injection point can be serviced while the line stays in operation.

Does EMT build the quill to ASME and NACE requirements?
EMT fabricates under an ASME U Stamp quality program, and materials and sealing are selected for the injected chemical, following NACE conventions where sour service applies.
