Description

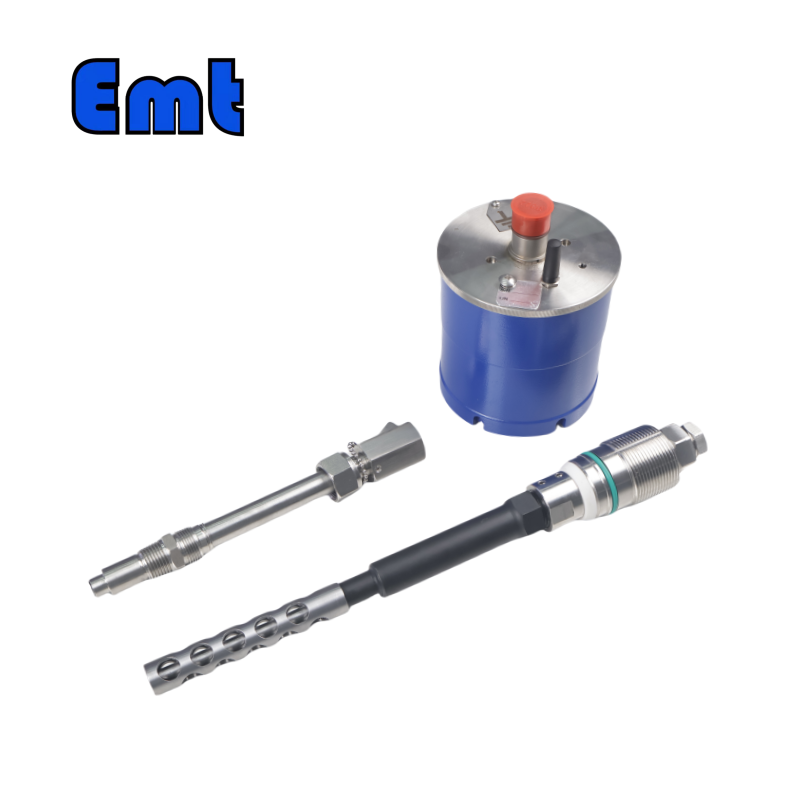

EMT’s Electrical Resistance Corrosion Probe offers a sophisticated and non-intrusive solution for real-time corrosion monitoring in refinery equipment. Their design and technology enable continuous surveillance over corrosion rates, ensuring the operational integrity and safety of the refining infrastructure.

1. EMT Electrical Resistance Probes Model Selection

Below is a table representation of the model selection parameters for EMT Electrical Resistance Probes:

Plug Code: Pxxx

Type Code	Type	Material Code	Material Description	Sealing Code	Sealing Material
0	Not Required	0	Carbon steel	0	Not Required
1	Hollow plug	1	316 stainless steel	1	Fluorine rubber sealing ring/PTFE main seal
		2	316L stainless steel	2	HNBR
		3	F51 duplex stainless steel
		4	INCONEL nickel based alloy

Temperature and Pressure Gauge Assembly Code: Txxx

Connection Code	Connection Size	Body Code	Body Material	Gauge Code	Gauge Material
0	Not Required	0	304 stainless steel	0	Not Required
1	1/2″	1	316 stainless steel	1	304 stainless steel
2	3/4″	2	316L stainless steel	2	316 stainless steel
		3	F51 duplex stainless steel

Probe Assembly Code: Dxx-Lx″

Connection Code	Connection Size	Body Code	Body Material	Pipeline Specification
0	Not Required	0	Carbon steel	Probe length varies
1	1/4″	1	304 stainless steel	with pipeline specs
2	1/2″	2	304L stainless steel
		3	316 stainless steel
		4	316L stainless steel
		5	F51 duplex stainless steel

2. Advantages Over Traditional Methods

EMT’s Electrical Resistance Probes provide significant advantages over traditional corrosion monitoring methods, such as weight loss coupons, ultrasonic thickness measurement, and visual inspections. Here’s an expanded explanation of their benefits:

⑴ High Measurement Resolution

• Capability: EMT probes can detect extremely fine changes in thickness, up to 30 nanometers. This level of detail is critical for industries where even minimal corrosion can lead to significant safety risks and operational inefficiencies.
• Benefit: Enables the early detection of corrosion, allowing for preventative maintenance before substantial damage occurs. This feature is particularly useful in critical applications where even a slight reduction in metal thickness can compromise structural integrity or cause leaks.

⑵ Rapid Response

• Capability: These probes are capable of measuring corrosion rates equivalent to 0.254 mm per year within just one hour. This rapid response time is several orders of magnitude faster than traditional methods, which may take days or weeks to provide comparable data.
• Benefit: Immediate feedback on corrosion rates allows for dynamic adjustments in process conditions, chemical dosing, and other control measures to mitigate ongoing corrosion issues swiftly.

⑶ Long Lifespan

• Capability: Designed to withstand up to a 0.25 mm loss in probe material, these probes are robust and built for long-term deployment.
• Benefit: The durability of EMT probes means fewer replacements and maintenance checks, reducing downtime and overall maintenance costs. Their ability to last in harsh conditions without degradation ensures consistent monitoring over extended periods.

⑷ Universal Applicability

• Capability: EMT probes are versatile and can be used in a variety of environments, including oil, gas, water, and soil, which encompass a wide range of pH levels, temperatures, and pressures.
• Benefit: This universal applicability eliminates the need for different devices for different environments, simplifying inventory and training requirements. It also allows for consistent data collection methodologies across diverse media and conditions.

3. Technical Evolution

Since the 1960s, resistance probe technology has advanced from manual, portable devices to sophisticated automatic systems capable of online monitoring, becoming a standard for corrosion assessment in China’s refining sector.

4. Strategic Significance

The use of these probes provides several strategic benefits:

• Real-Time Monitoring: Facilitates immediate assessment and response to changing corrosion rates.
• Early Warning System: Acts as a preventive measure against conditions that may lead to corrosion failure.
• Maintenance Scheduling: Informs and optimizes maintenance cycles based on data-driven insights.
• Environmental Safety: Helps prevent leaks and other hazards by timely identification of corrosion issues.

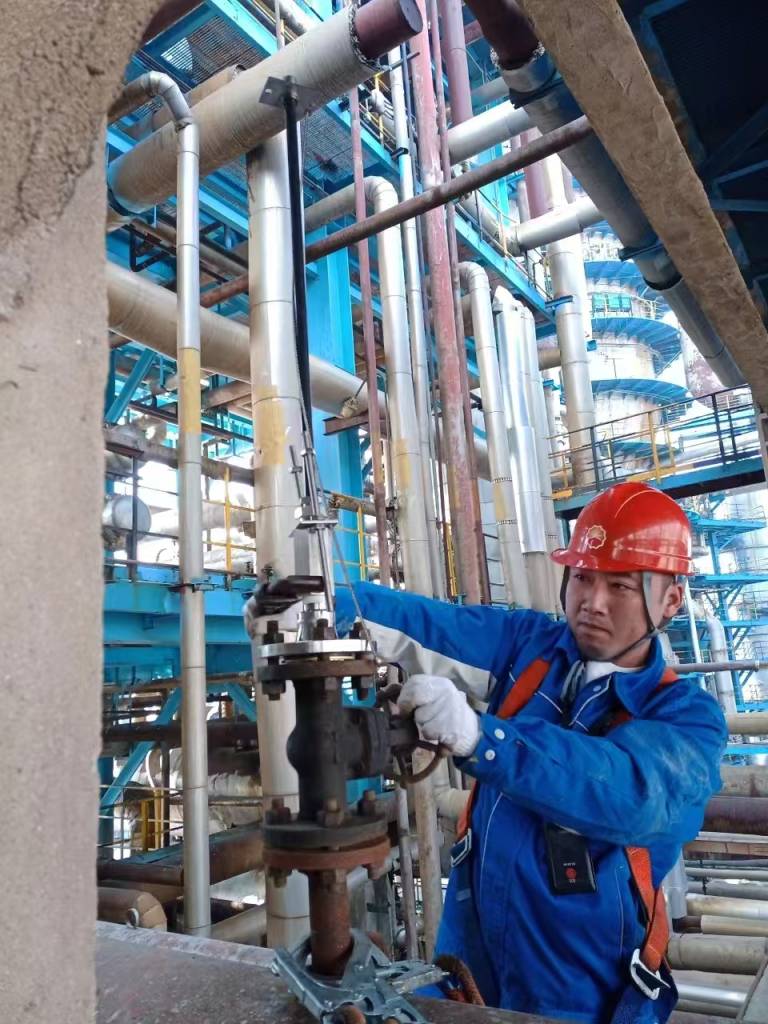

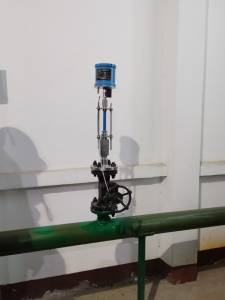

5. Installation and Operation

Designed for ease of installation and user-friendly operation, EMT’s Electrical Resistance Probes ensure minimal disruption to refinery operations while providing valuable insights into equipment health and safety.

In conclusion, EMT Electrical corrosion probe represent a vital tool in the ongoing efforts to maintain the safety and efficiency of refinery operations, blending advanced technology with practical application to meet the demands of modern industrial environments.
